Wall Mounted Digital Signage Manufacturer
Custom Wall Mounted Digital Signage for Commercial Projects
Lucky XFC offers wall-mounted digital signage for retail, offices, restaurants, hotels, and more. Choose from 4K displays, Android systems, touch functionality, custom enclosures, and mounting options. Designed for commercial use, bulk orders, and OEM/ODM.
- 4K Android configurations available
- Landscape or portrait installation
- Touch and non-touch options
- OEM/ODM hardware customization
Tip: Tell us your screen size, installation method, quantity, application and required functions for a faster quotation.
*Specific conditions apply based on final order confirmation and configuration.

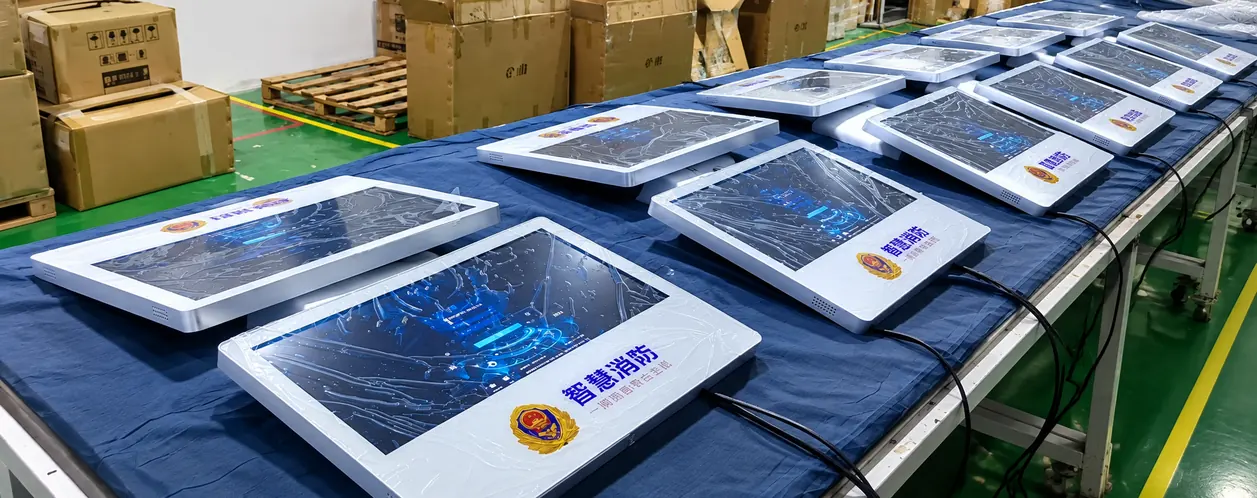

Wall Mounted Digital Signage Built Around Your Installation
Wall mounted digital signage combines a commercial display screen, Android system or media player, network connectivity, wall bracket, and content playback capabilities into a space-saving terminal. It is engineered specifically for advertising, menus, announcements, directories, corporate communications, digital dashboards, and interactive information.
Commercial Display
High-brightness, durable panels designed for continuous operation in business environments, far exceeding consumer TV standards.
Android System or External Player
Integrated Android mainboards for all-in-one deployment, or standard interfaces for connecting your preferred external media players.
Ethernet and Wi-Fi
Flexible network connectivity options to support remote content management systems (CMS) and real-time updates.
Landscape or Portrait Playback
Hardware and structural support for both horizontal menu boards and vertical advertising poster configurations.
Wall Bracket and Cable Planning
Standard VESA mounting patterns and custom enclosures designed to hide cables and ensure secure wall attachment.
Optional Touch Interaction
Available capacitive or infrared touch configurations for wayfinding, interactive directories, and self-service applications.
Why Wall Mounted Digital Signage Projects Fail After Installation
Avoid costly rework by addressing common hardware and installation mismatches before procurement.
Wrong screen size for the viewing distance
Content becomes unreadable or overwhelming.
Lucky XFC: We recommend sizes based on your specific corridor width, ceiling height, and user position.
Consumer TV selected for commercial deployment
Overheating, portrait mode failure, and lack of auto-power on.
Lucky XFC: All configurations use commercial-grade components designed for scheduled or extended operation.
Wall structure and VESA pattern confirmed too late
Costly wall modifications or unstable mounting.
Lucky XFC: We provide mechanical drawings and VESA specifications before production begins.
Cables, ventilation and service access not planned
Messy appearance and inability to perform maintenance.
Lucky XFC: Custom enclosures can be designed with concealed routing and accessible service panels.
CMS or customer app incompatible with hardware
Software crashes or fails to install on the provided OS.
Lucky XFC: We evaluate Android versions, memory, and storage against your software requirements.
Quotation excludes mounting, player or logistics
Unexpected budget overruns during deployment.
Lucky XFC: We provide transparent, itemized quotes based on the complete agreed configuration.

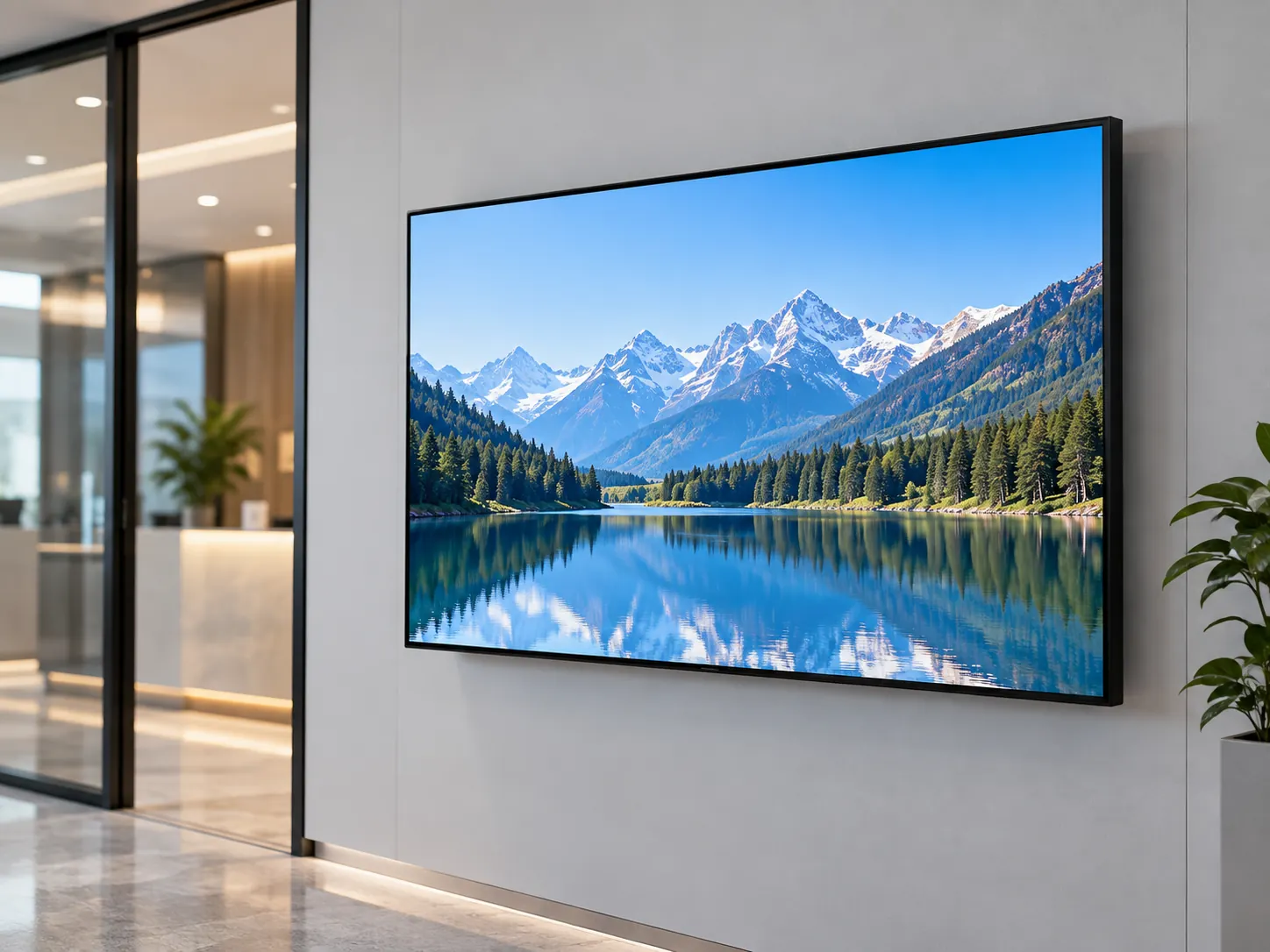

What Is Wall Mounted Digital Signage?
Wall mounted digital signage is a commercial display system fixed to a wall to present advertising, menus, announcements, directories, dashboards or interactive content. A complete setup normally includes the display, playback hardware, network connection, compatible content software, mounting structure and installation planning.
The Complete System Architecture:
- 1 Commercial display panel
- 2 Android system or media player
- 3 Ethernet, Wi-Fi or local USB connection
- 4 Compatible CMS or playback application
- 5 Wall bracket, enclosure and cable routing
- 6 Installation, testing and maintenance access
Choose a Wall Mounted Digital Signage Configuration
Select the hardware platform that best matches your installation environment and content strategy.

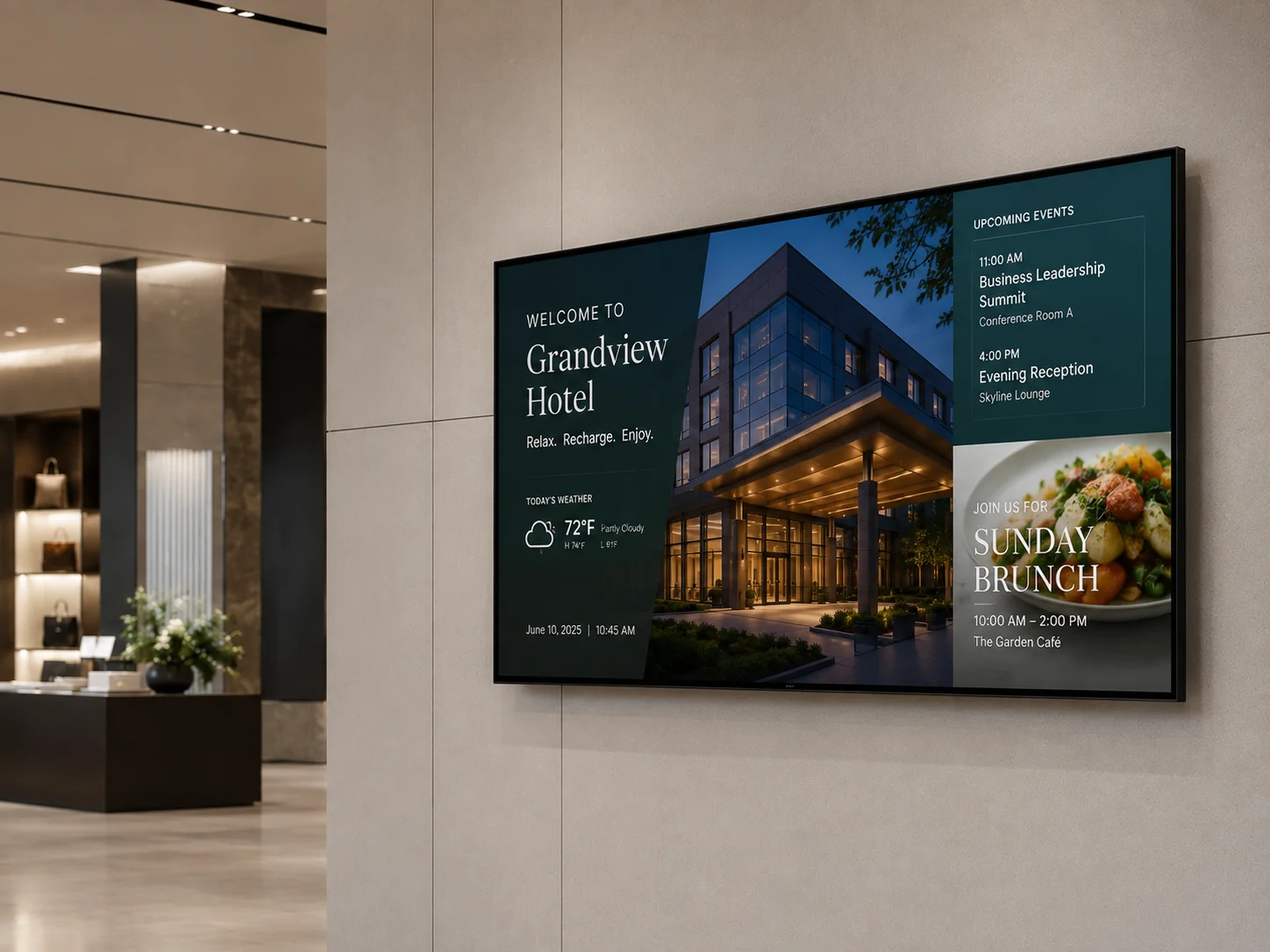

Standard 4K Wall Mounted Digital Signage
Suitable for retail advertising, office announcements, hotels, and public information displays. Delivers crisp, high-resolution commercial content.
Request This Configuration

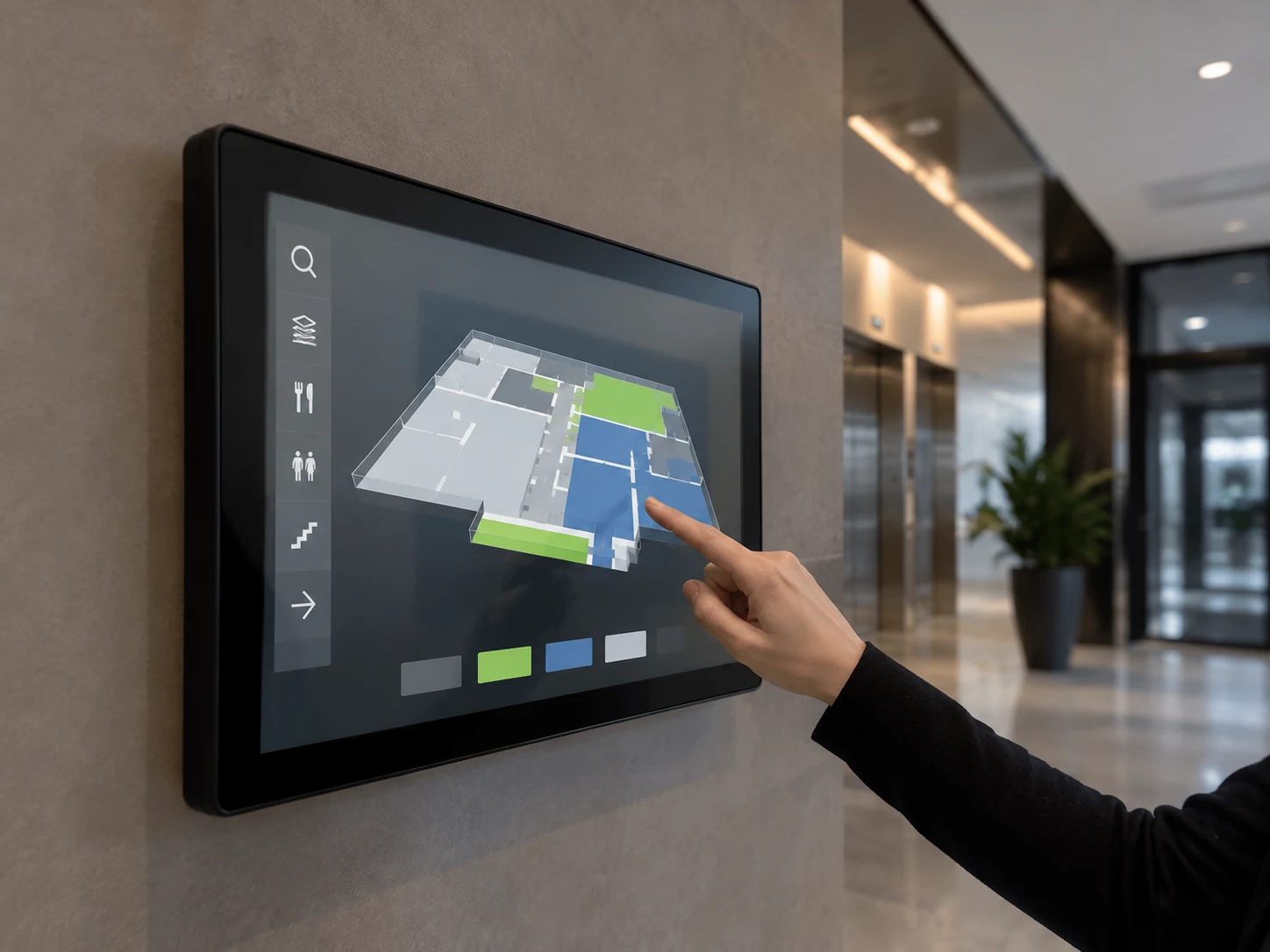

Wall Mounted Touch Screen Digital Signage
Suitable for interactive directories, product browsing, visitor wayfinding, and information lookup. (Touch functionality is an optional configuration).
Request This Configuration

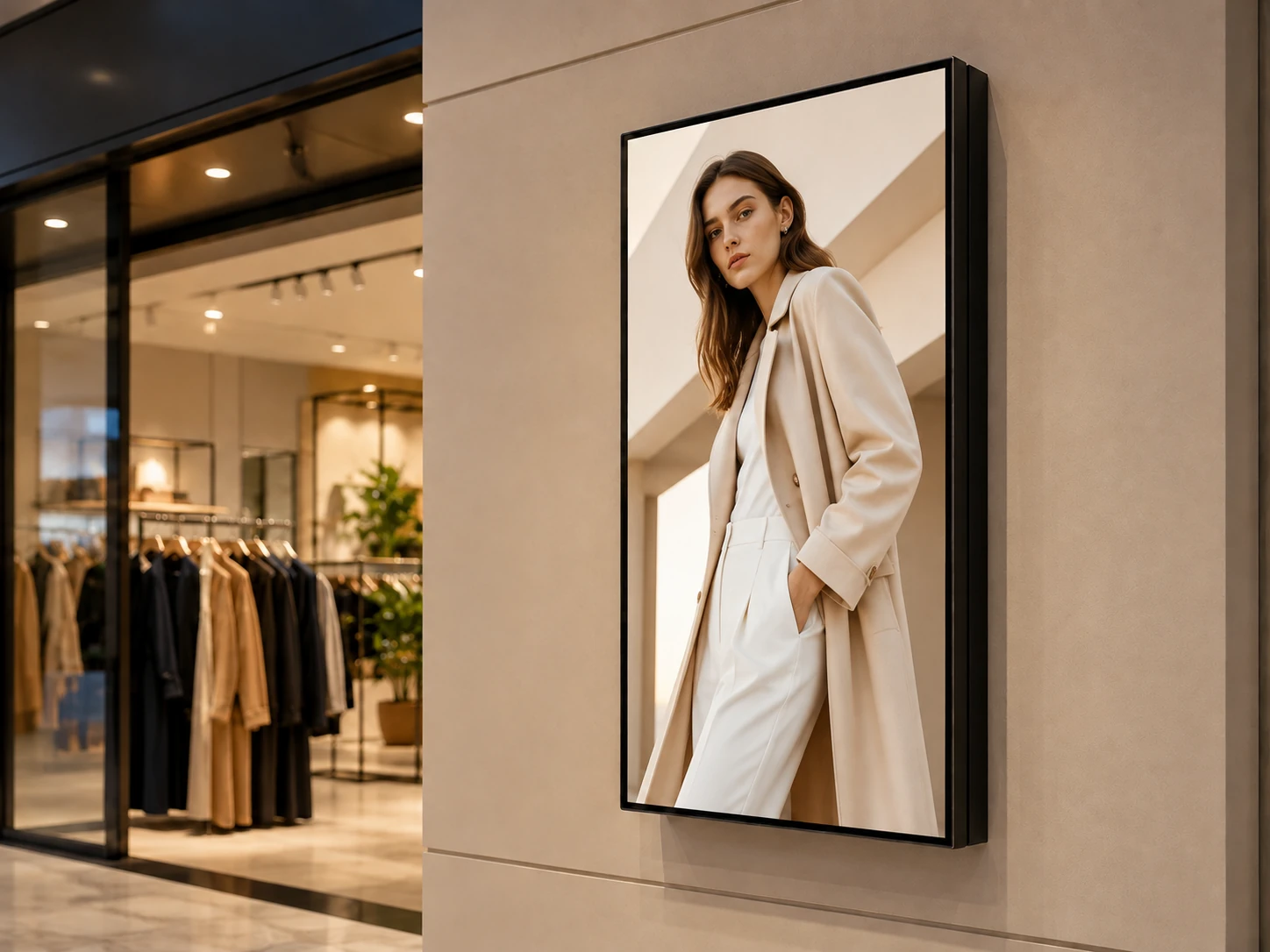

Portrait Wall Mounted Advertising Display
Ideal for poster-style advertising, vertical brand content, retail store promotions, and narrow corridor information displays.
Request This Configuration

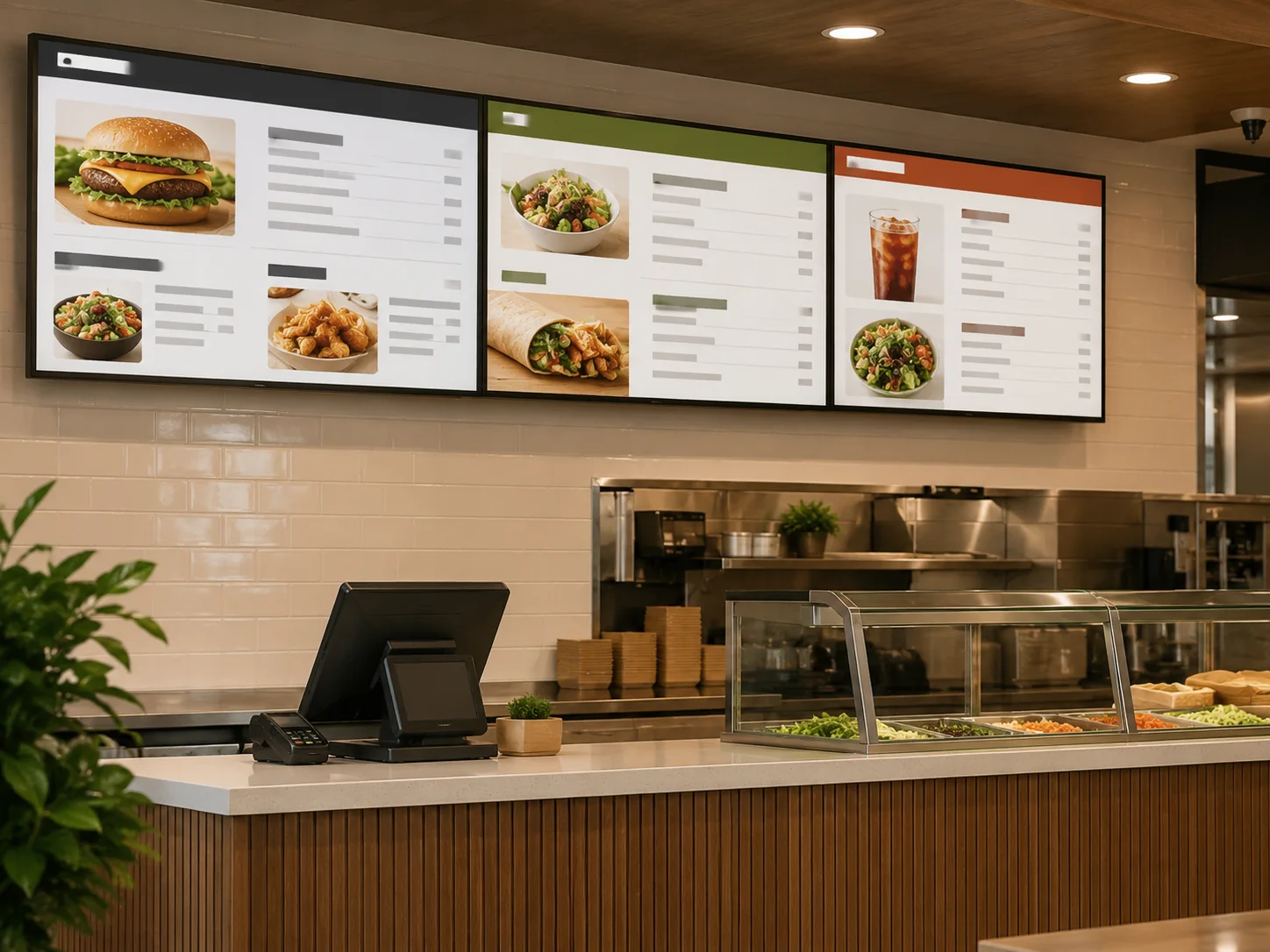

Landscape Digital Menu Board
Perfect for restaurant menus, corporate dashboards, queue information, and multi-screen arrays. (Menu software functionality depends on your chosen CMS).
Request This Configuration

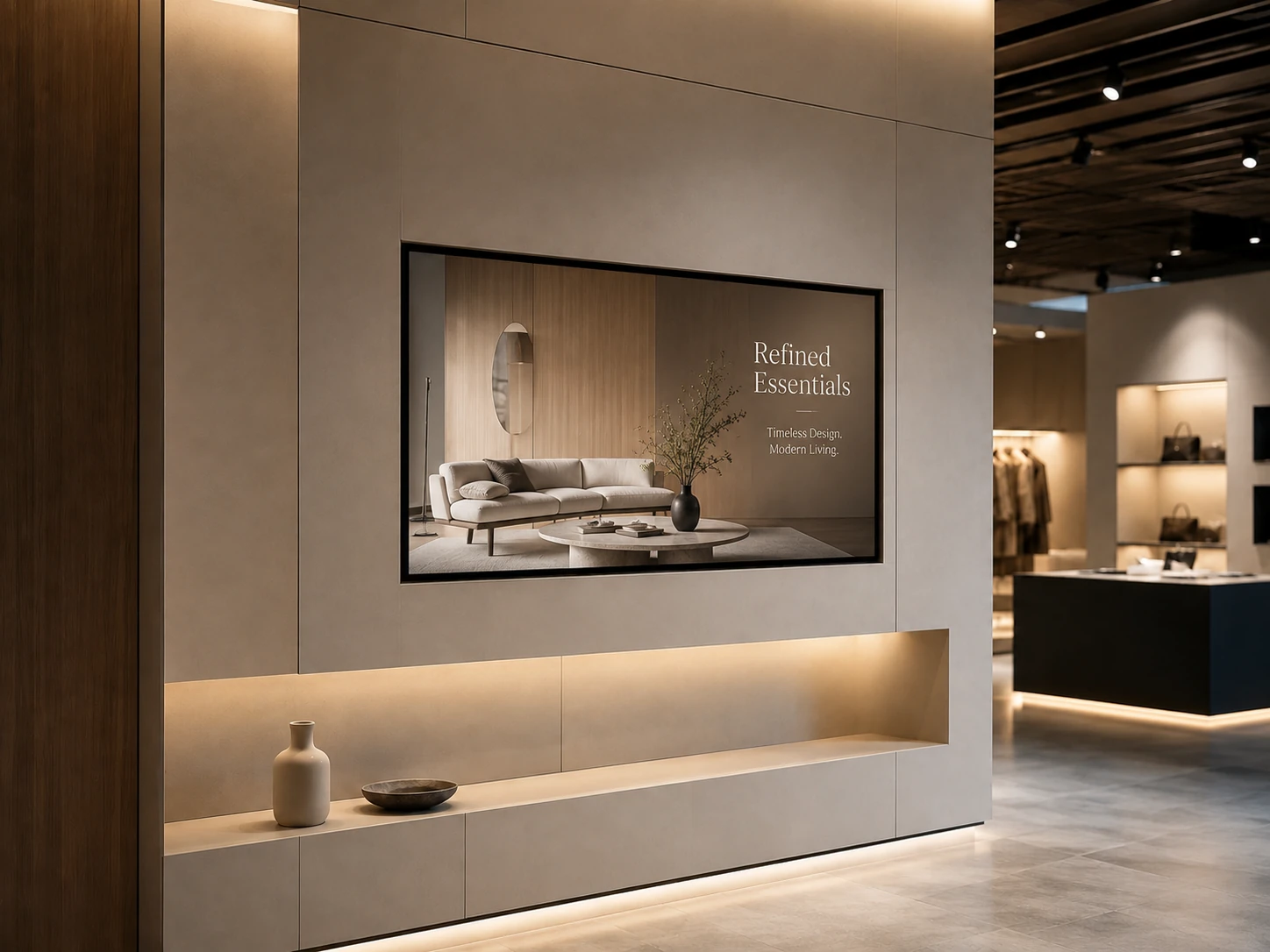

Embedded or Recessed Wall Display
Designed for retail furniture integration, showroom structures, and custom walls. Requires prior confirmation of cutout dimensions, ventilation, and maintenance access.
Request This Configuration

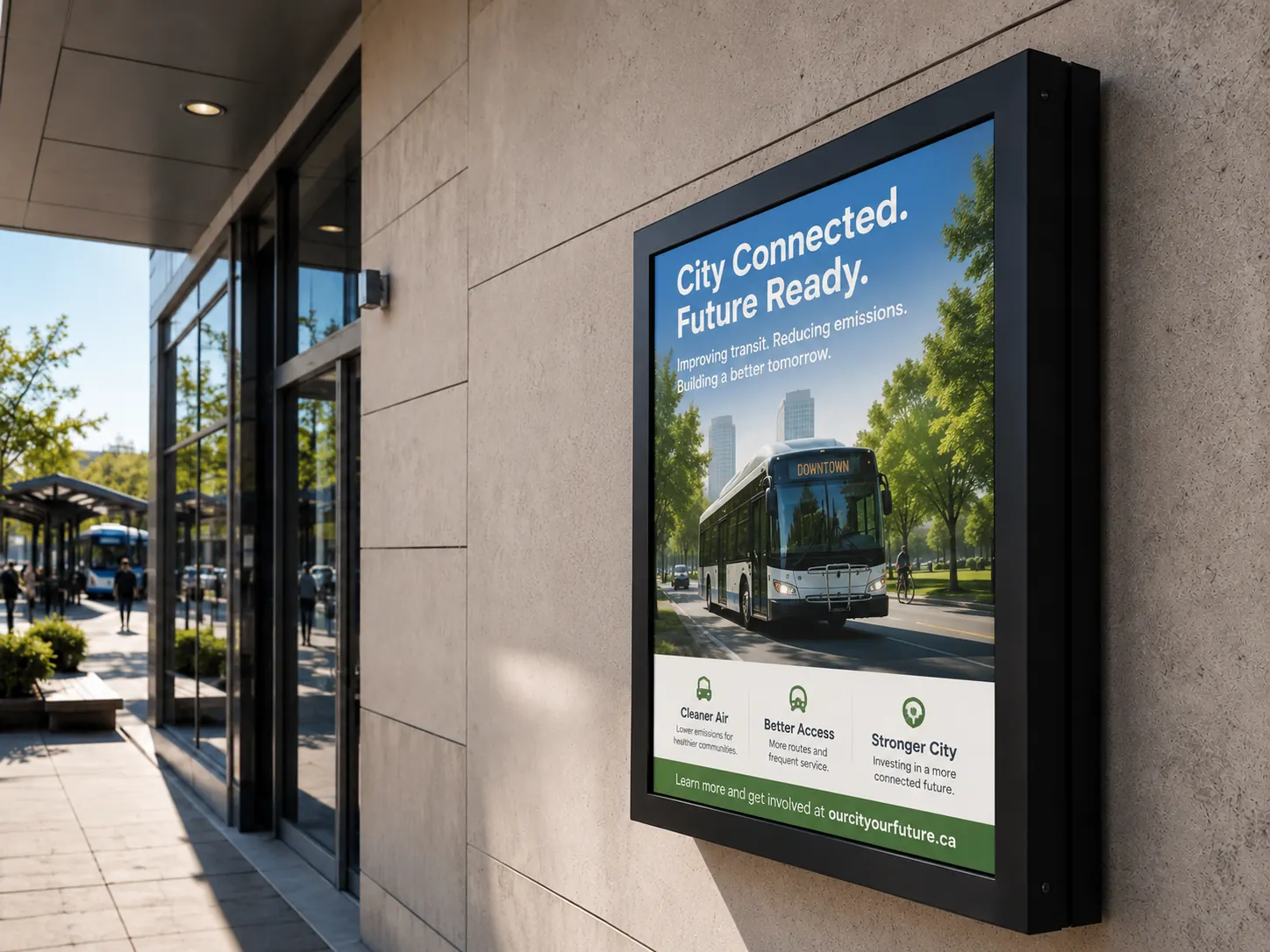

Outdoor Wall Mounted Digital Signage
An independent engineering configuration requiring dedicated high-brightness panels, waterproof/dustproof enclosures, temperature control, and specific structural design.
Request This ConfigurationWall Mounted Digital Signage for Commercial Environments
See how different industries deploy wall-mounted displays to engage audiences and streamline communication.

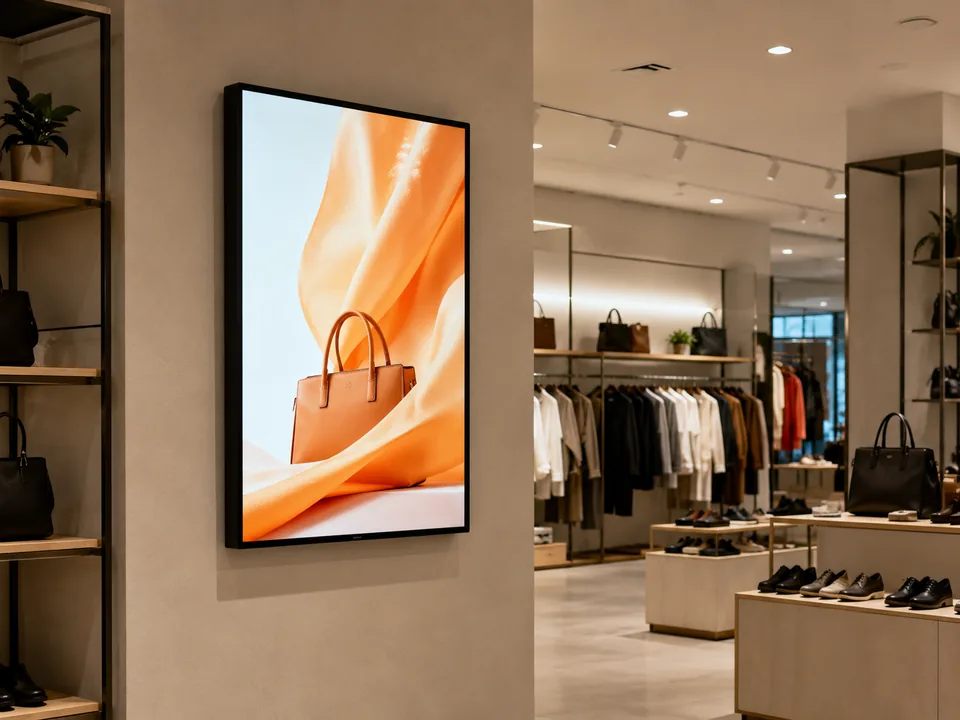

Retail Stores
Deploy a retail digital screen to showcase promotions and brand videos. Wall mounting saves floor space. Panel brightness is the critical parameter to combat store lighting.

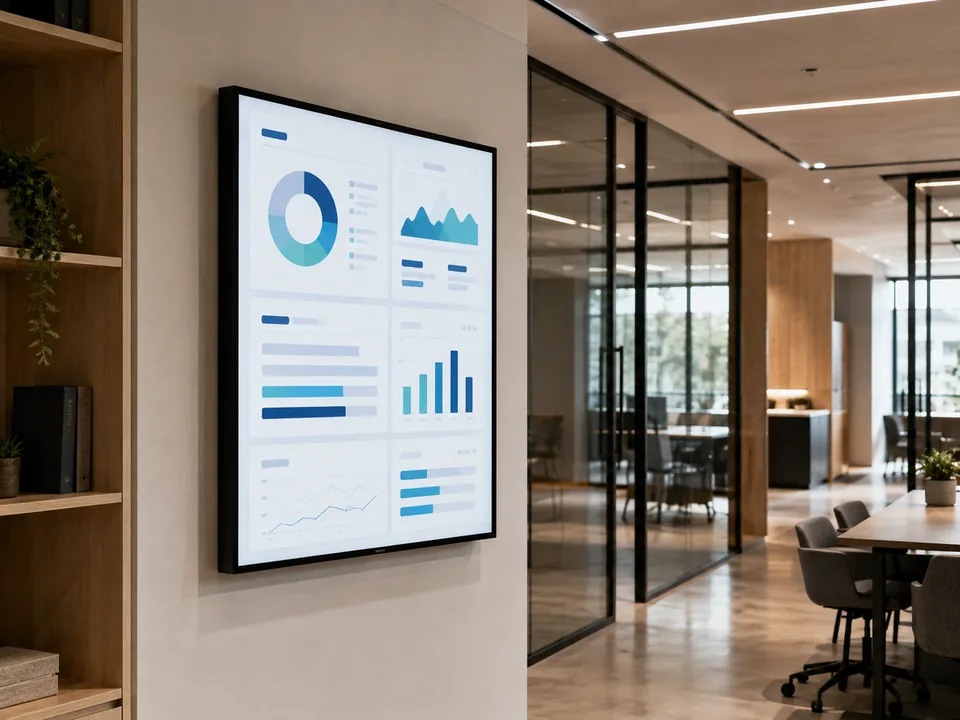

Corporate Offices
Use office digital signage for internal announcements and KPI dashboards. Wall integration keeps corridors clear. Network reliability is vital for seamless daily updates.

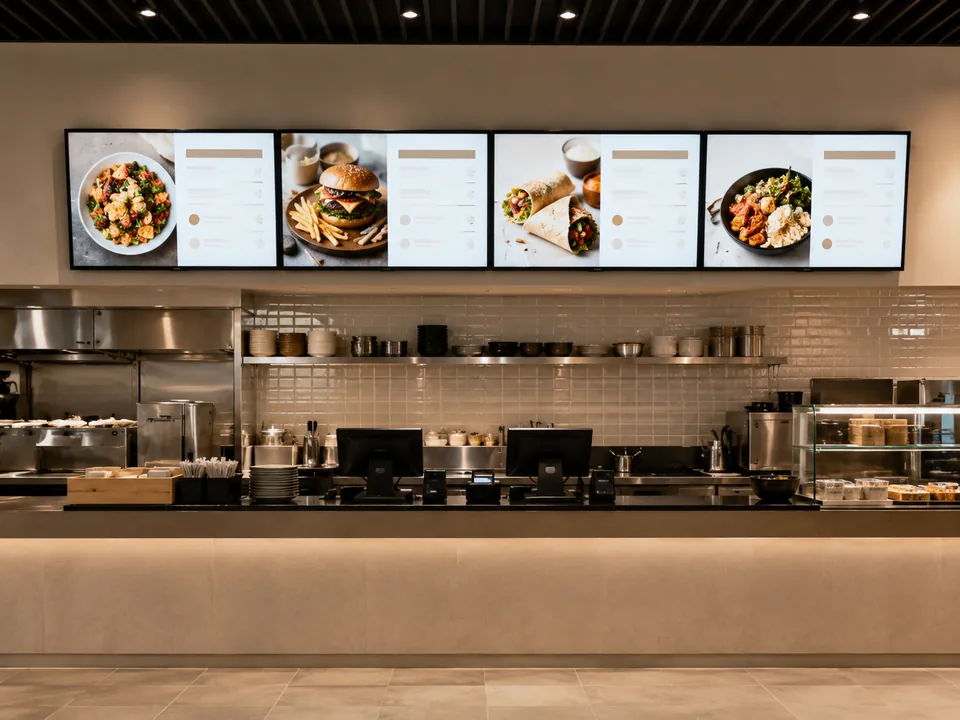

Restaurants
Install a digital menu board above the counter to display pricing and food imagery. It allows instant updates. Bezel width is crucial when aligning multiple screens.

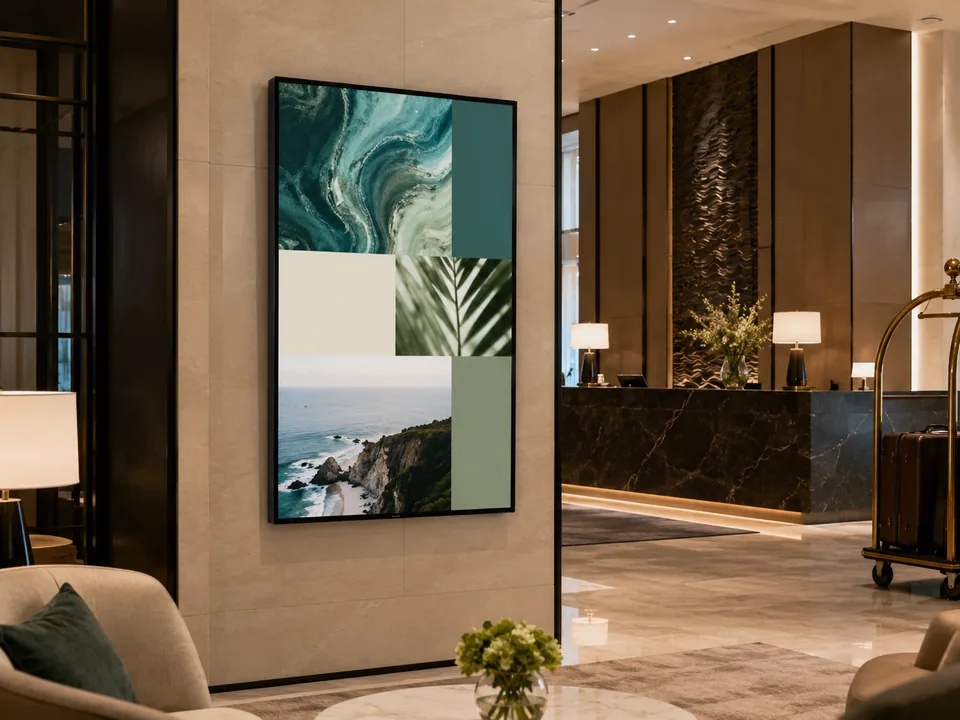

Hotel Lobbies
Present event schedules and local attractions to guests. Wall mounting integrates with luxury interior design. Exterior finish customization ensures brand alignment.

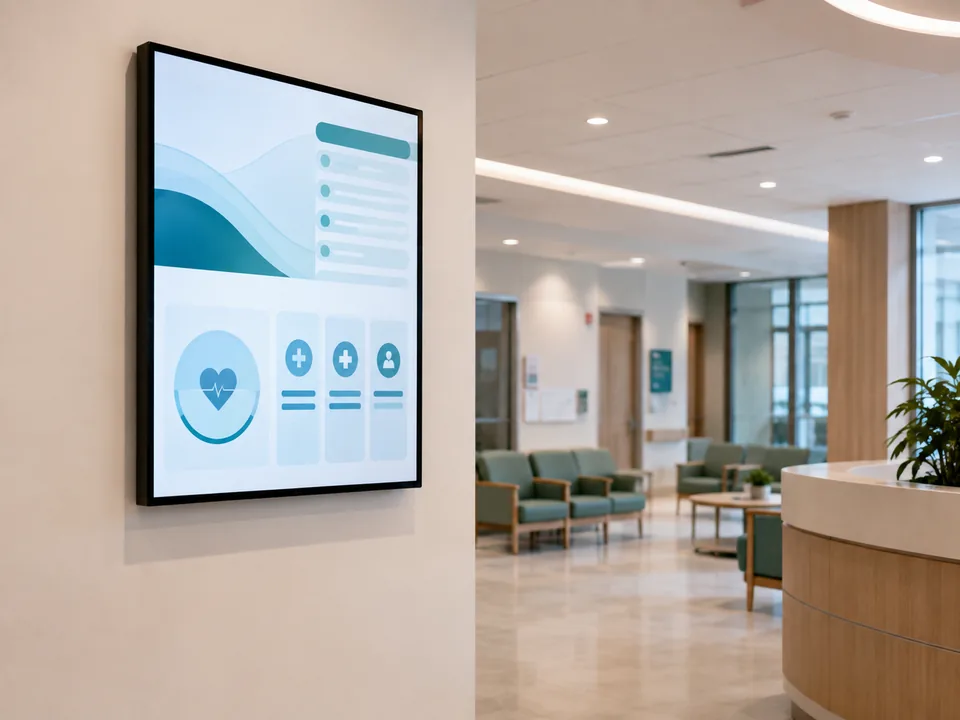

Healthcare & Clinics
Display queue status and health information in waiting rooms. Wall placement prevents tampering. Tempered glass protection is essential for high-traffic safety.

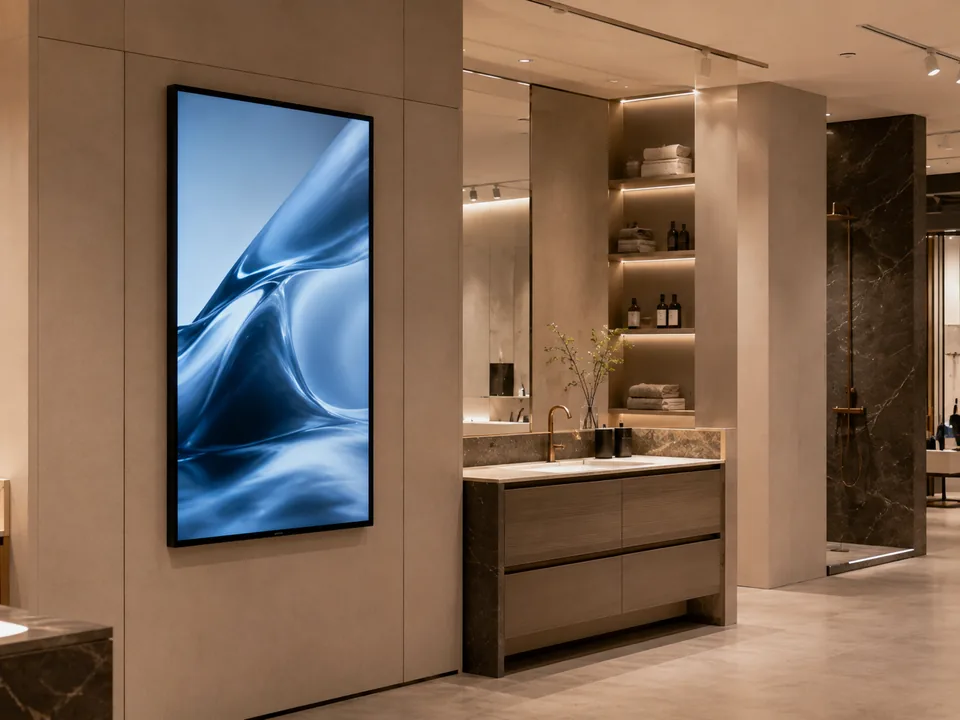

Showrooms
Showcase product details and demonstration videos next to physical items. Embedded wall installation provides a sleek look. 4K resolution is necessary for high-quality visuals.

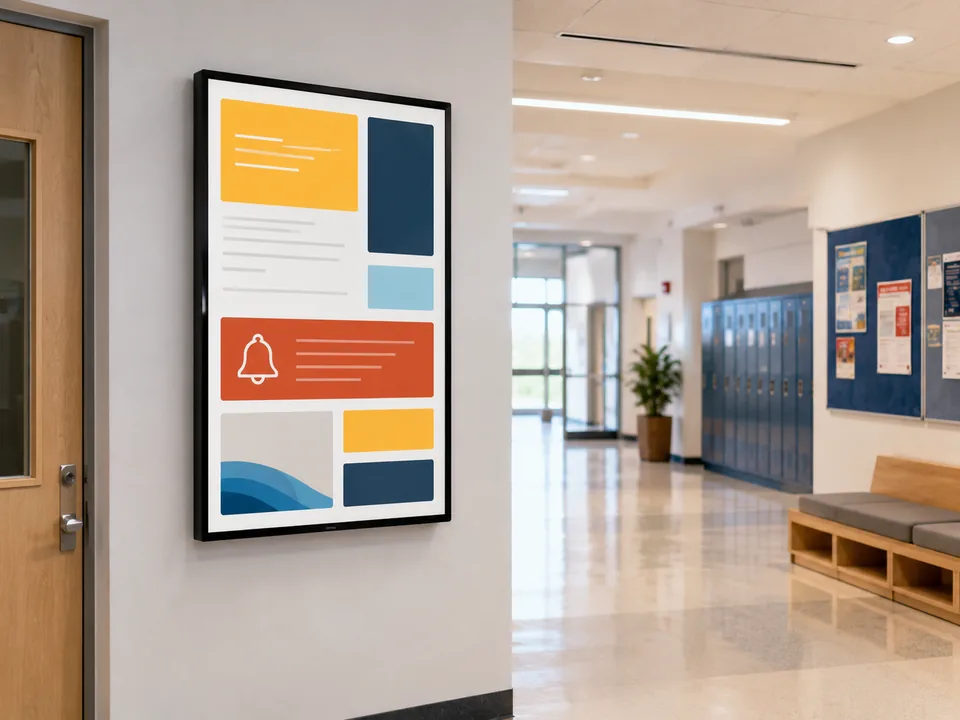

Schools & Training
Broadcast campus news and emergency alerts in hallways. Wall brackets keep screens out of reach. Centralized CMS compatibility is the most important factor for IT.

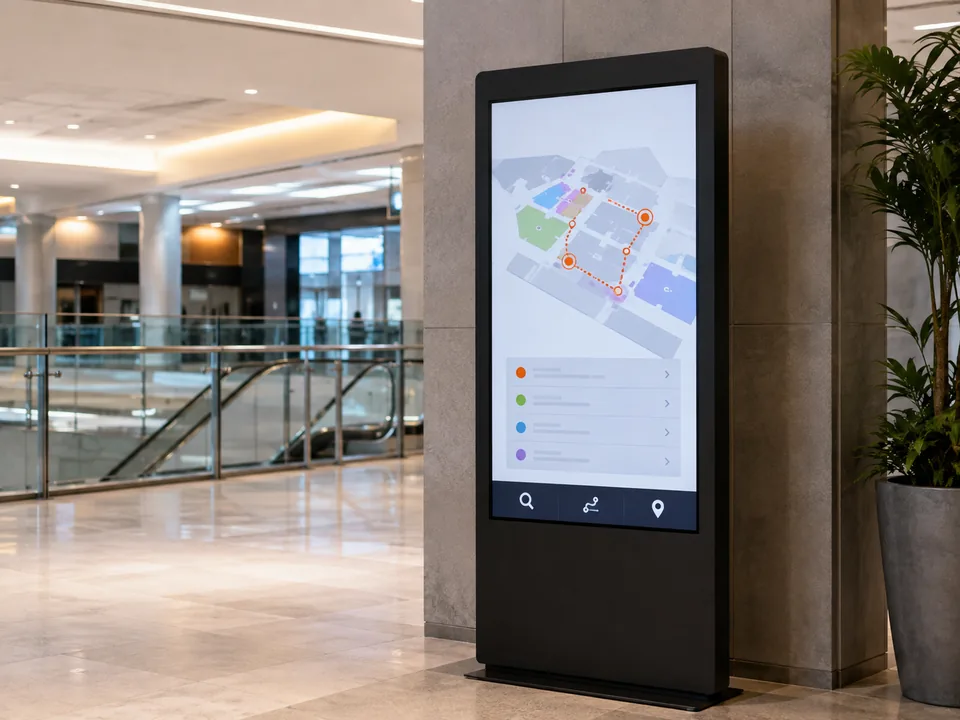

Wayfinding
Guide visitors through malls or large facilities. Wall mounting provides a stable interaction point. Touch function is only valuable here because users must search or select routes.
Commercial Display Hardware Designed for Practical Deployment
Every feature is engineered to provide tangible value for B2B procurement, installation, and long-term operation.

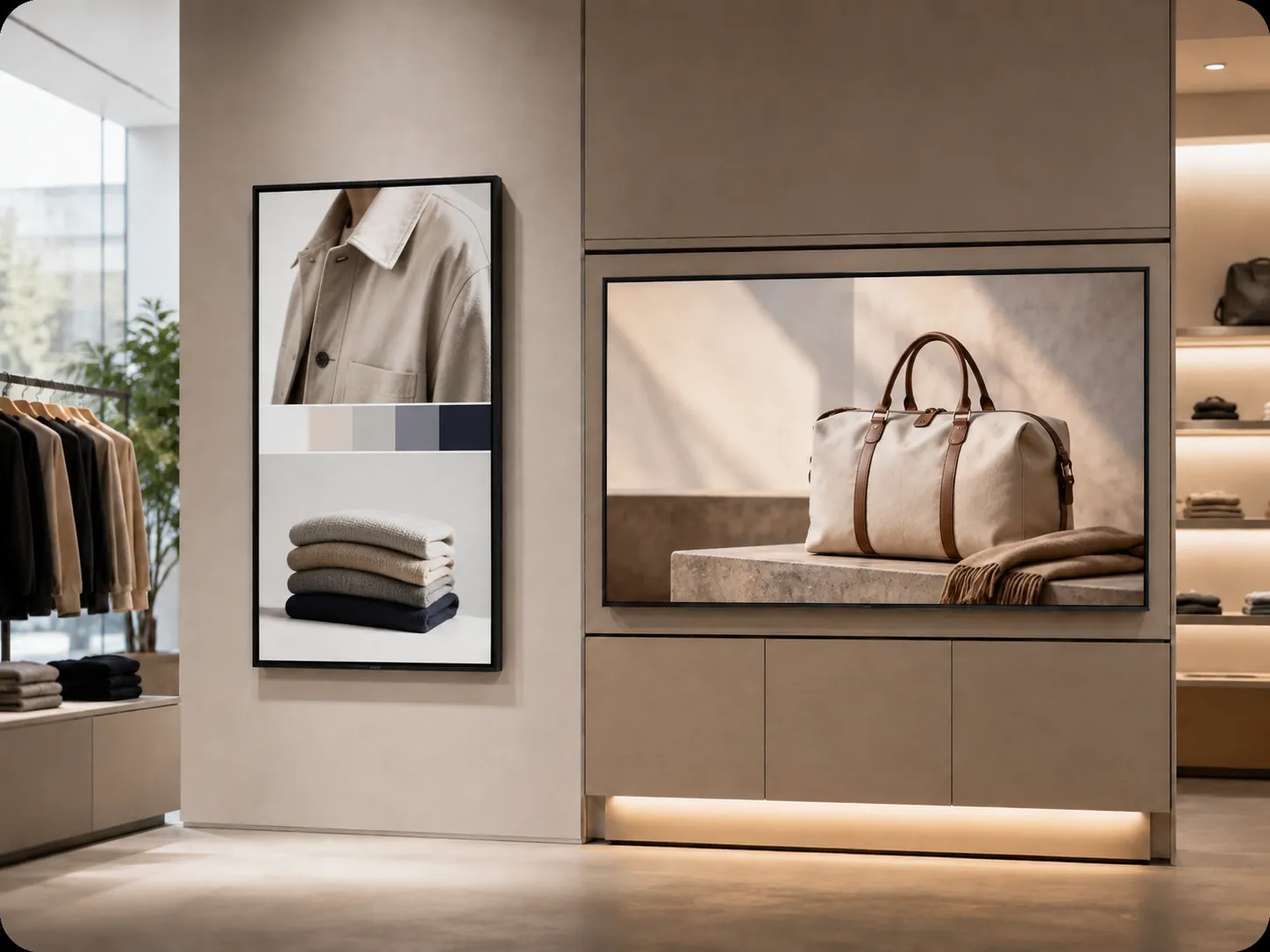

Available 4K Resolution & Orientation Flexibility
- Available 4K resolution for detailed commercial content: Provides sharp text and vibrant imagery, ensuring your brand message remains professional even when viewed up close in retail spaces.
- Landscape and portrait playback: Hardware supports vertical poster formats or horizontal menu formats without cooling failures common in consumer TVs.
- Wall-mounted, embedded and base installation options: Adapts to your specific structural reality, whether hanging in a corridor or built directly into custom retail cabinetry.

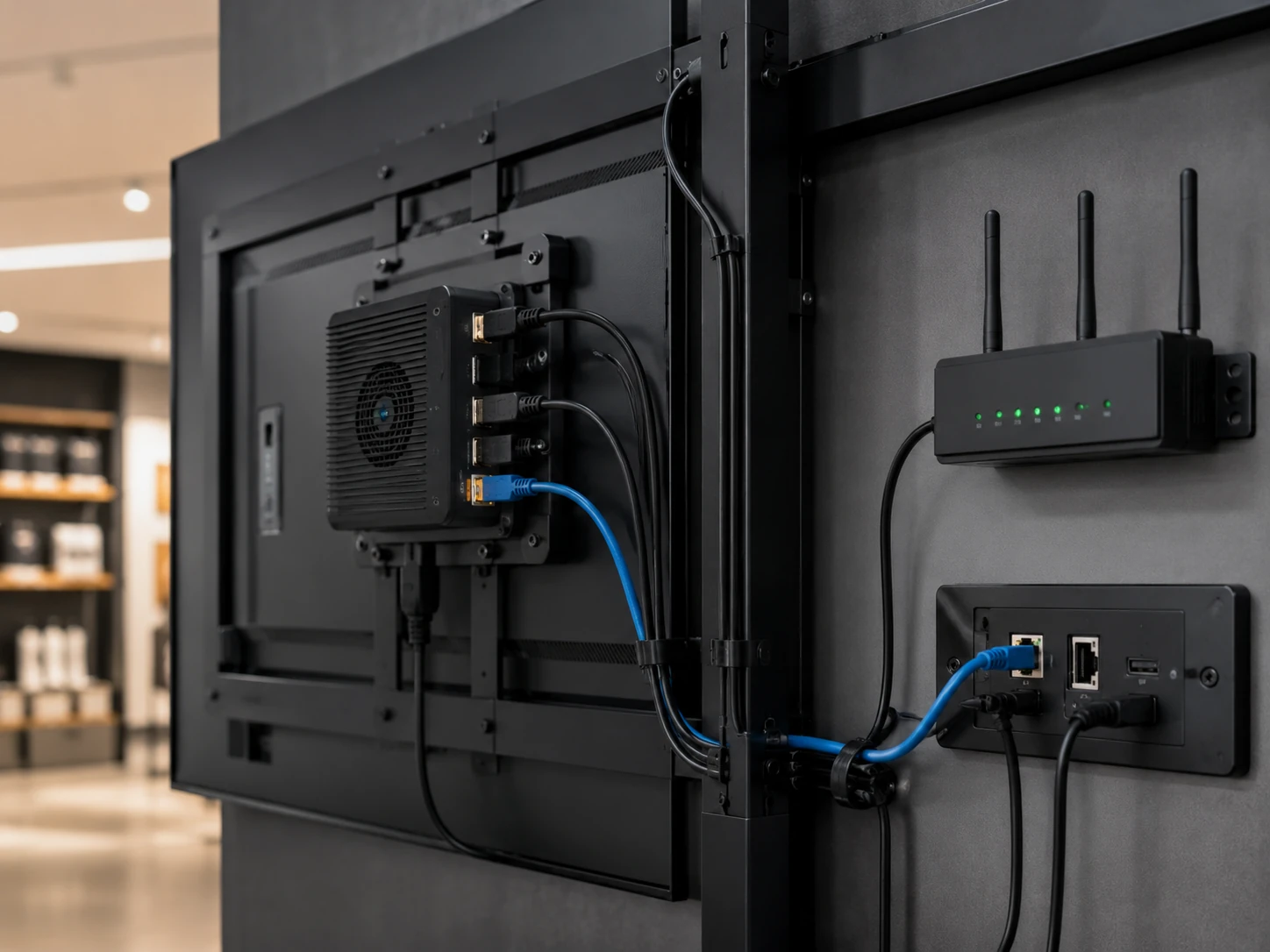

Integrated Systems & Network Connectivity
- Integrated Android hardware options: Eliminates the need for external media players, reducing cable clutter and simplifying the overall installation process.
- Ethernet, Wi-Fi and USB deployment methods: Allows for seamless integration with remote cloud CMS platforms or simple local USB updates where networks are unavailable.
- Scheduled power and loop playback: On supported configurations, automate your display hours to save energy and ensure content is always running during business hours without manual intervention.
Durability & Project Customization
- Tempered protective glass (on referenced models): Protects the LCD panel from accidental impacts and scratches in high-traffic public environments.

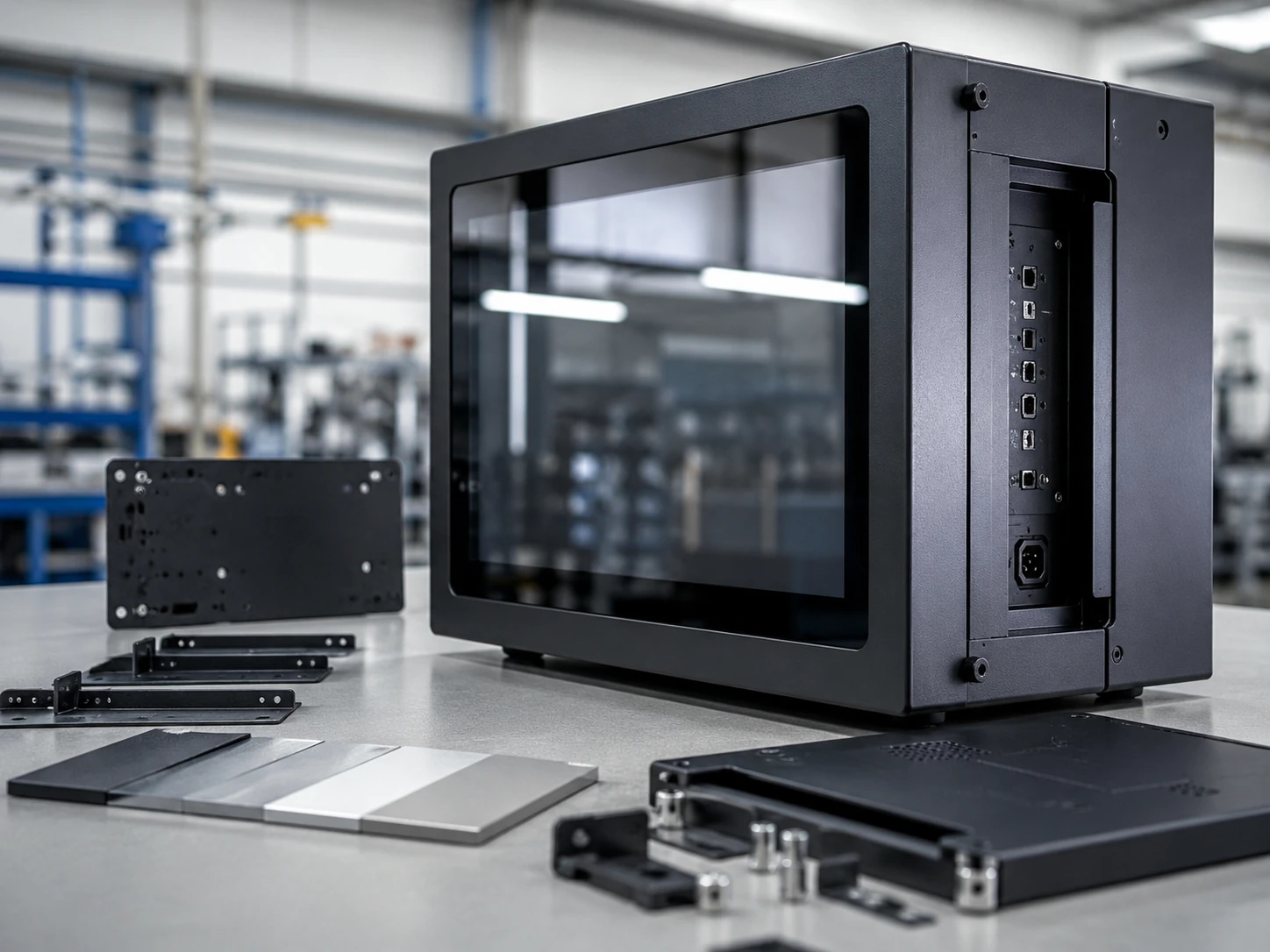

- Custom enclosure, interfaces, color and branding: Aligns the hardware appearance with your corporate identity and ensures the ports match your specific peripheral needs.
- Touch or non-touch configuration & compatibility review: Pay only for touch when needed. We verify hardware compatibility with your intended customer application before bulk production.

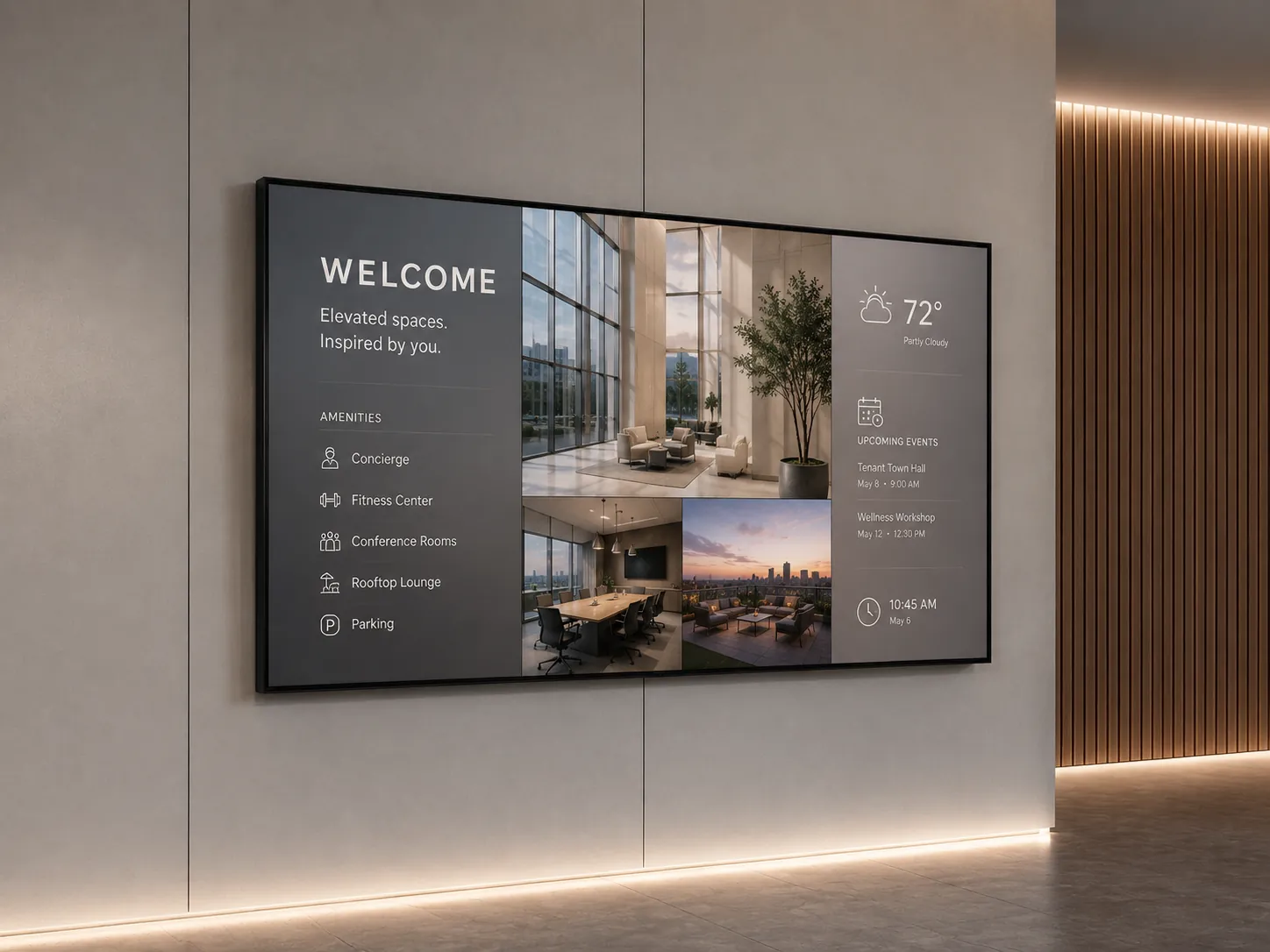

55-Inch Wall Mounted Digital Signage
Model: MZYHY55AZ
Specification Declaration: These specifications apply only to the referenced 55-inch MZYHY55AZ configuration. Panel, system, brightness, enclosure, touch function and optional features may vary by model and project. Confirm the approved specification sheet before ordering.
55-Inch Wall Mounted Digital Signage Specifications
Reference data for model MZYHY55AZ. Subject to final project confirmation.
Display
- Model MZYHY55AZ
- Display size 55 inches
- Panel TFT-LCD, S-IPS
- Resolution 3840 × 2160 @ 60Hz
- Typical brightness 300 cd/m²
- Contrast ratio 1200:1
- Viewing angle 178° / 178°
- Response time 8ms G-to-G
- Active area 1209.6 × 680.4mm
- Backlight LED
- Aspect ratio 16:9
- Display life >30,000 hours
System
- OS Android 11
- CPU Quad-core Cortex-A55, 1.8GHz
- GPU Mali-G52 2EE
- Memory 2GB DDR4 (4GB opt.)
- Storage 16GB (8/32/64GB opt.)
- Video H.265/H.264, up to 2160p
- Playback Features: Loop playback, split-screen, scheduled power control
Network & Interfaces
- Ethernet and Wi-Fi
- Optional 3G/4G module
- Bluetooth 4.0
- USB 2.0 ×2, RJ45 ×1, TF card slot ×1
- Headphone port ×1, Built-in speakers: 2 × 5W
Dimensions & Installation
- With bracket 1258.2 × 728.7 × 65.6mm
- Without bracket 1258.2 × 728.7 × 53.6mm
- VESA 400 × 400mm
- Net weight 24.42kg
- Packaged weight 29.10kg
- Exterior color Black
- Installation: Wall-mounted, embedded, base-mounted
Power & Environment
- Power AC 100–240V
- Operating power 150W typical
- Standby ≤1W
- Temp -5°C to 40°C
- Humidity 10% to 90% RH
OEM/ODM Wall Mounted Digital Signage Options
Tailor the hardware platform to your specific project requirements or brand identity.
How Does Wall Mounted Digital Signage Work?
It works by combining a commercial display with a media player and content management software (CMS). You create content on a PC, send it via network or USB to the display's integrated Android system or connected player, and the hardware outputs the visual information according to your schedule.
Create Content
Design your images or videos.
Select Player
Choose Android, USB or external media player.
Connect
Connect screen via chosen network method.
Configure
Set orientation, playlist and schedule.
Publish
Publish, monitor and update.
Important Note: Remote publishing and multi-screen management depend on the selected CMS, player and network architecture. Do not imply that proprietary CMS software is included unless it is part of the confirmed quotation.
Plan the Wall Before You Order the Display
Proper installation requires verifying structural and electrical parameters prior to finalizing the hardware configuration.
Engineering Alert: Do not finalize the enclosure or wall opening until the approved product drawing, bracket dimensions and cable positions have been confirmed.
Wall Mounted Digital Signage vs TV
Understand the critical hardware differences before making a procurement decision for your commercial space.
| Feature | Commercial Digital Signage | Consumer TV |
|---|---|---|
| Primary purpose | Continuous public display & advertising | Home entertainment |
| Portrait installation | Supported (cooling designed for both) | Not supported (risk of overheating/panel failure) |
| Scheduled playback | Hardware auto-power on/off support | Requires manual remote control |
| CMS & player compatibility | Open Android or dedicated interfaces | Closed smart TV OS |
| Commercial interfaces | Industrial ports, RS232 (optional) | Standard HDMI/USB only |
| Mounting & enclosure | Customizable, secure commercial brackets | Basic consumer mounts |
| Customization | OEM/ODM hardware and branding available | None |
| Multi-screen deployment | Designed for uniform fleet management | Difficult to manage at scale |
| Suitable operating environment | *Operating-duty rating must be confirmed for selected model | Low-frequency, climate-controlled home use |
When is a TV enough?
Suitable for low-frequency operation, single-screen, local playback, and small projects with no special installation or management requirements.
When should you choose commercial digital signage?
Suitable for portrait installation, scheduled playback, multi-location content management, custom structures, interface matching, application testing, and long-term commercial deployment.
Touch vs Non-Touch Wall Mounted Digital Signage
Non-Touch
Best for advertising, digital menus, announcements, video playback, dashboards, and passive information display. The hardware structure and software deployment are generally simpler and more cost-effective.
Touch Screen
Required for product browsing, directory search, visitor wayfinding, interactive information, and self-service operations. Requires additional confirmation of touch technology (PCAP/IR), software compatibility, installation height for accessibility, and user interface design.
"Choose touch only when the user needs to make a selection, search for information or complete an action. For passive advertising and information playback, non-touch is usually simpler and more cost-effective."
Discuss a Touch ConfigurationIndoor vs Outdoor Wall Mounted Digital Signage
Do not assume indoor specifications apply to outdoor environments.
| Requirement | Indoor Configuration | Outdoor Configuration |
|---|---|---|
| Ambient brightness | Standard (e.g., 300-500 nits) | High brightness (1500-3000+ nits) |
| Sunlight exposure | No direct sunlight | Requires UV protection & anti-isotropic panels |
| Water & dust protection | Basic (IP20/IP30 typical) | High (IP55/IP65 required) |
| Temperature control | Passive cooling sufficient | Active fans or HVAC systems |
| Enclosure sealing | Open ventilation | Sealed against moisture and insects |
| Anti-glare | Optional | Mandatory AR/AG glass |
| Corrosion resistance | Standard painted steel/aluminum | Galvanized/outdoor powder coating |
| Installation environment | Climate-controlled interiors | Exposed walls, drive-thrus, building exteriors |
Important: MZYHY55AZ is an indoor reference configuration. Outdoor projects must be independently specified. Do not apply indoor parameters to outdoor products, even if the model names appear similar.
How to Choose Wall Mounted Digital Signage
Follow these steps to define your hardware requirements before requesting a quote.
Define the application
Are you showing menus, ads, or interactive maps?
Measure the wall and viewing distance
Determines the maximum physical size and required text legibility.
Evaluate ambient light
High ambient light requires higher brightness panels (e.g., 500+ nits).
Select screen size and orientation
Choose landscape or portrait based on your content format.
Choose touch or non-touch
Add touch only if user interaction is strictly necessary.
Confirm Android, player, CMS and connectivity
Ensure the hardware platform supports your software.
Confirm installation, schedule and maintenance
Plan for power, network cables, and future service access.
Information Required for a Faster Quote
- Application
- Installation location
- Preferred screen size
- Viewing distance
- Landscape or portrait
- Touch or non-touch
- Android or external player
- Required interfaces
- Quantity
- Destination country
- Branding/enclosure customization
- Project timeline
What Determines Wall Mounted Digital Signage Cost?
There is no single uniform price for all projects. The complete cost depends on hardware, system, installation, quantity, customization, and logistics.
From Requirement to Production
Lucky XFC evaluates custom requirements spanning size, system, interfaces, enclosure, mounting, color, branding, and packaging to deliver tailored hardware.
1. Requirement Review
Analyze project needs.
2. Component Eval
Check compatibility.
3. Mechanical Design
Structure & enclosure.
4. Drawing Approval
Client confirms specs.
5. Prototype Assembly
Build initial sample.
6. Sample Testing
Verify performance.
7. Batch Production
Scale manufacturing.
8. Inspect & Ship
Final QC and logistics.
A Hardware Partner for Commercial Display Projects
Verifiable production capacity and strict quality control.

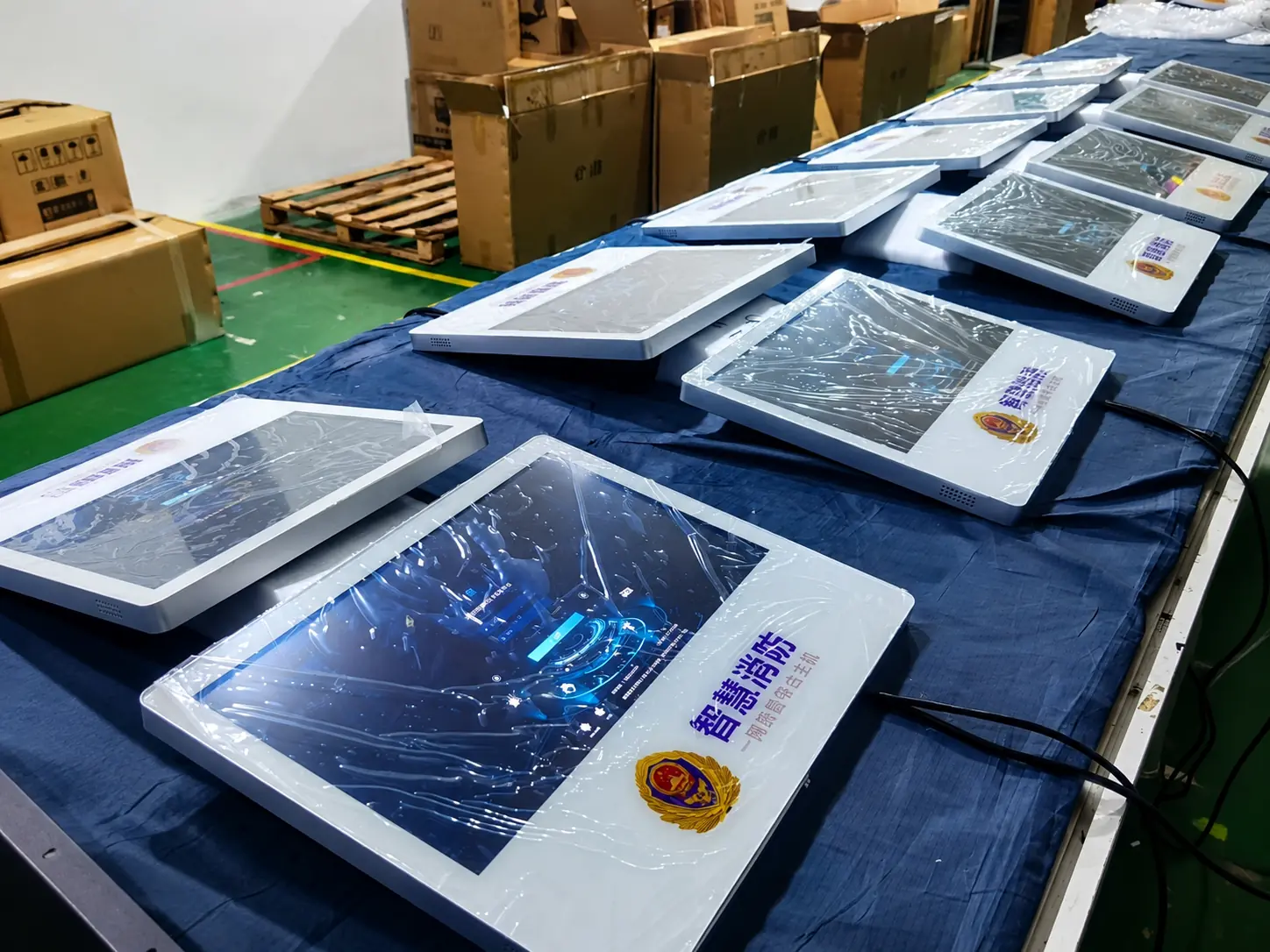

Inside the Factory: Production & Quality Testing
Watch our brief 45-second overview showcasing the rigorous assembly and testing procedures at our facility. See firsthand how our QC team conducts 100% inspections to verify touch response, display quality, interfaces and appearance according to the approved specifications.
Global Quality & Compliance Standards
Our products are manufactured under strict quality control systems and comply with international standards, ensuring reliability and safety for your projects.
ISO 9001:2015
CE Certification
FCC Certification
RoHS Compliance
IP56/IP65/IP67/IK10

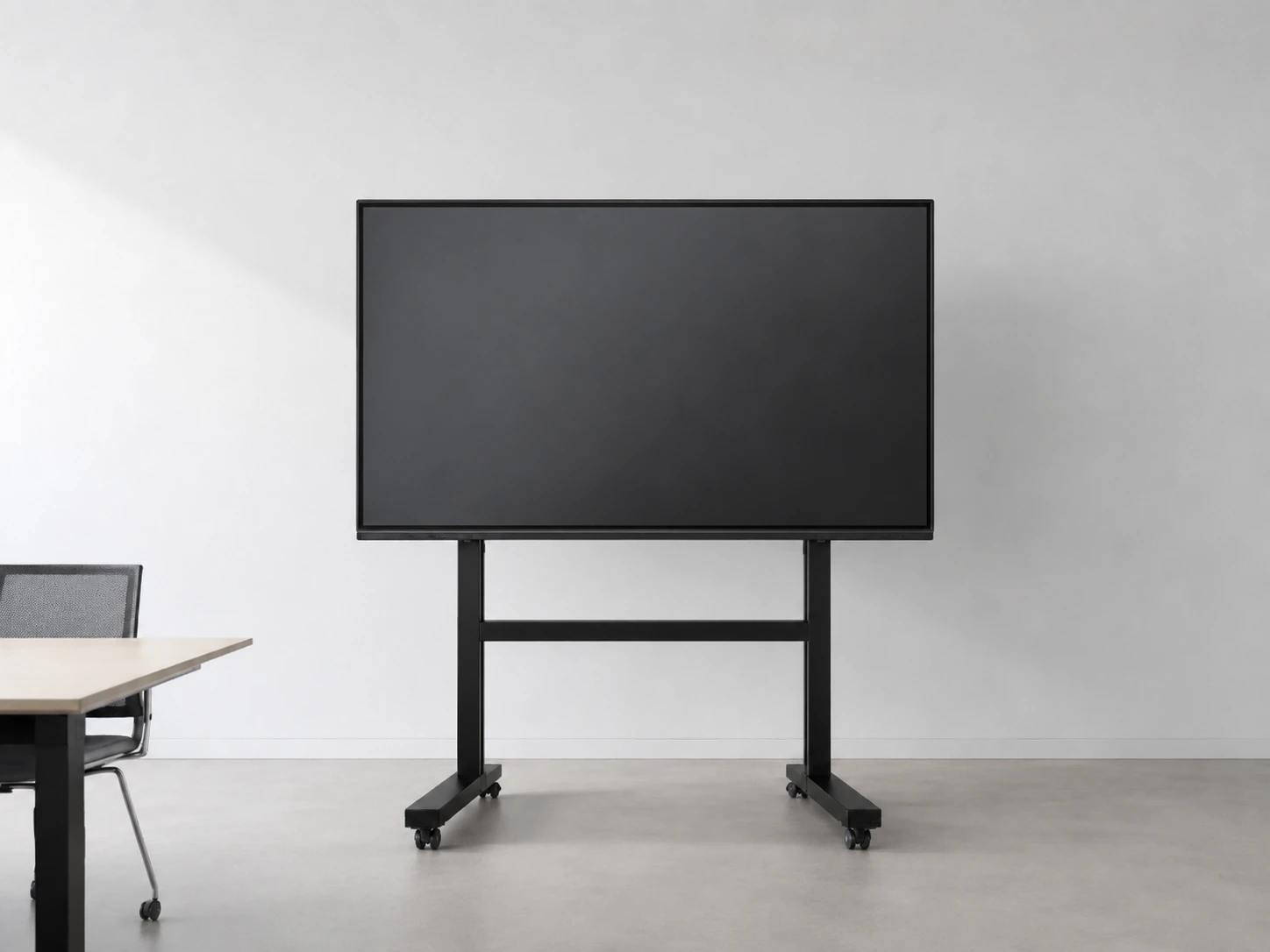

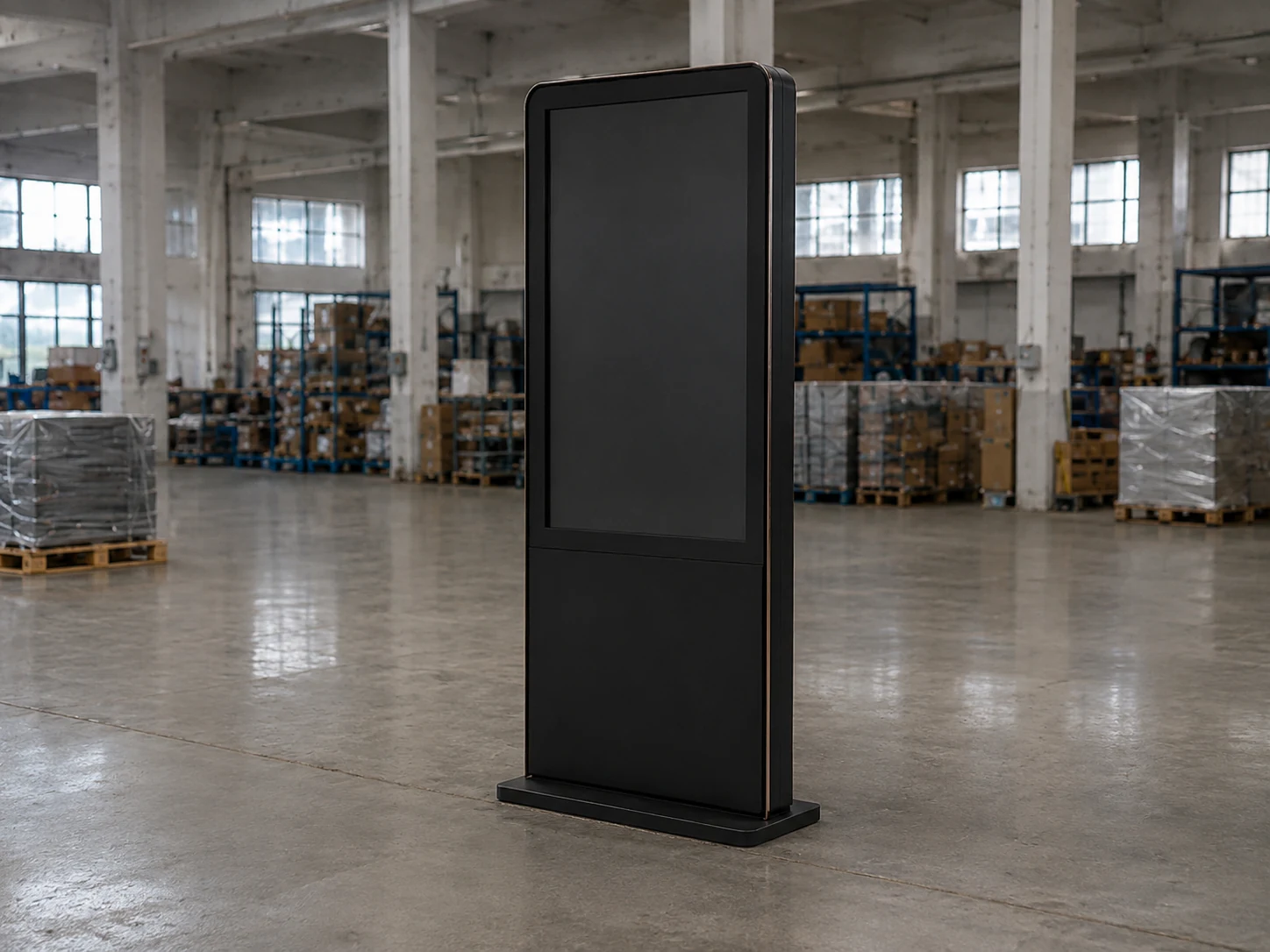

Explore Related Commercial Display Solutions
Wall Mounted Digital Signage FAQs
What is wall mounted digital signage?
How does wall mounted digital signage work?
What is included in a complete digital signage system?
What is the difference between digital signage and a TV?
Can wall mounted digital signage be installed vertically?
What screen size should I choose?
How bright should an indoor digital signage display be?
Can I use my own digital signage CMS?
Does Lucky XFC offer touchscreen wall mounted digital signage?
Can the enclosure, color and interfaces be customized?
Is a media player included?
How is wall mounted digital signage installed?
Can this product be used outdoors?
What affects the price?
What information is required for a quotation?
What is the MOQ?
What are the typical sample and bulk production lead times?
What warranty is available?
Get the Right Wall Mounted Digital Signage Configuration
Share your application, wall dimensions, preferred screen size, installation method, quantity and system requirements. Lucky XFC will review the project and recommend a suitable hardware configuration for quotation.
Company
Shenzhen Lucky-XFC Technology Co., Ltd.
Address
No. 3, Lianfeng Road, Hongqiaotou Community, Yanluo Street, Bao'an District, Shenzhen, Guangdong Province, China
