Custom Slot Machine Monitor & Display Manufacturer
XFC manufactures curved, flat and touch-enabled slot machine monitors for new gaming cabinets, equipment integration and display replacement projects. Choose from C-shaped, J-shaped and flat touch displays with configurable screen size, touch structure, housing, interface, resolution and installation format.

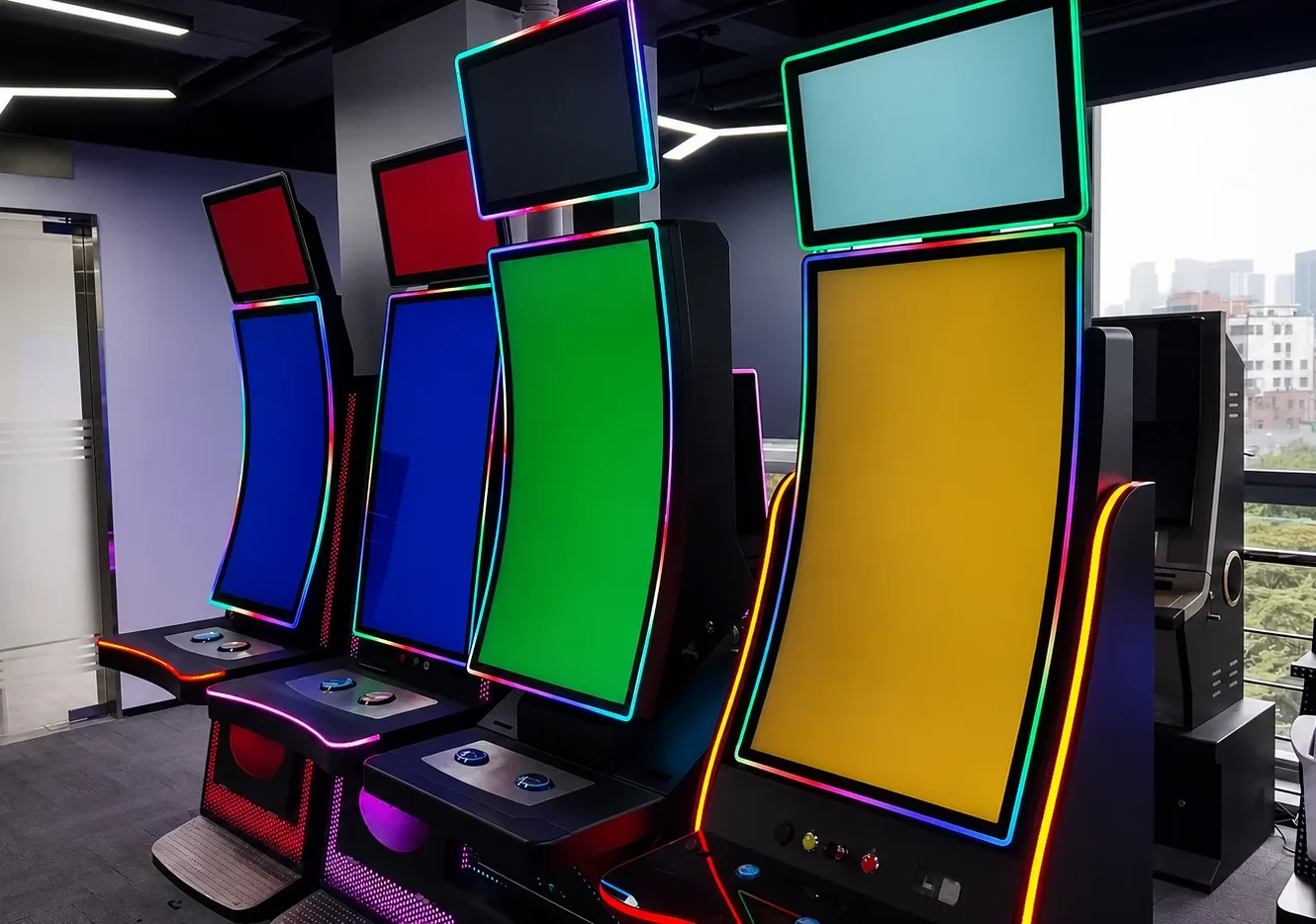

What Is a Slot Machine Monitor?
A slot machine monitor is a commercial display integrated into a gaming cabinet. It may use a flat, curved, vertical or touch-enabled screen and must match the cabinet structure, gaming computer, power input, mounting method and interface requirements.
“Slot machine monitor” and “slot machine display” usually describe the same hardware. “Monitor” often refers to the complete screen assembly with controller and interfaces, while “display” may also refer to the panel or integrated display module.
Display Panel
Determines screen size, resolution, brightness, refresh rate, viewing angle and overall image performance.
Touch System
Provides responsive player interaction through a projected capacitive touch layer, controller and custom cover-glass structure.
Controller and Interfaces
Connects the display to the gaming computer through HDMI, USB, RJ45 or project-specific interfaces.
Mechanical Structure
Uses a metal housing or open-frame structure designed around the gaming cabinet.
Slot Machine Monitor Options for Different Cabinet Designs
Choose a curved, flat or custom gaming display according to the cabinet structure, interaction area and installation requirements.

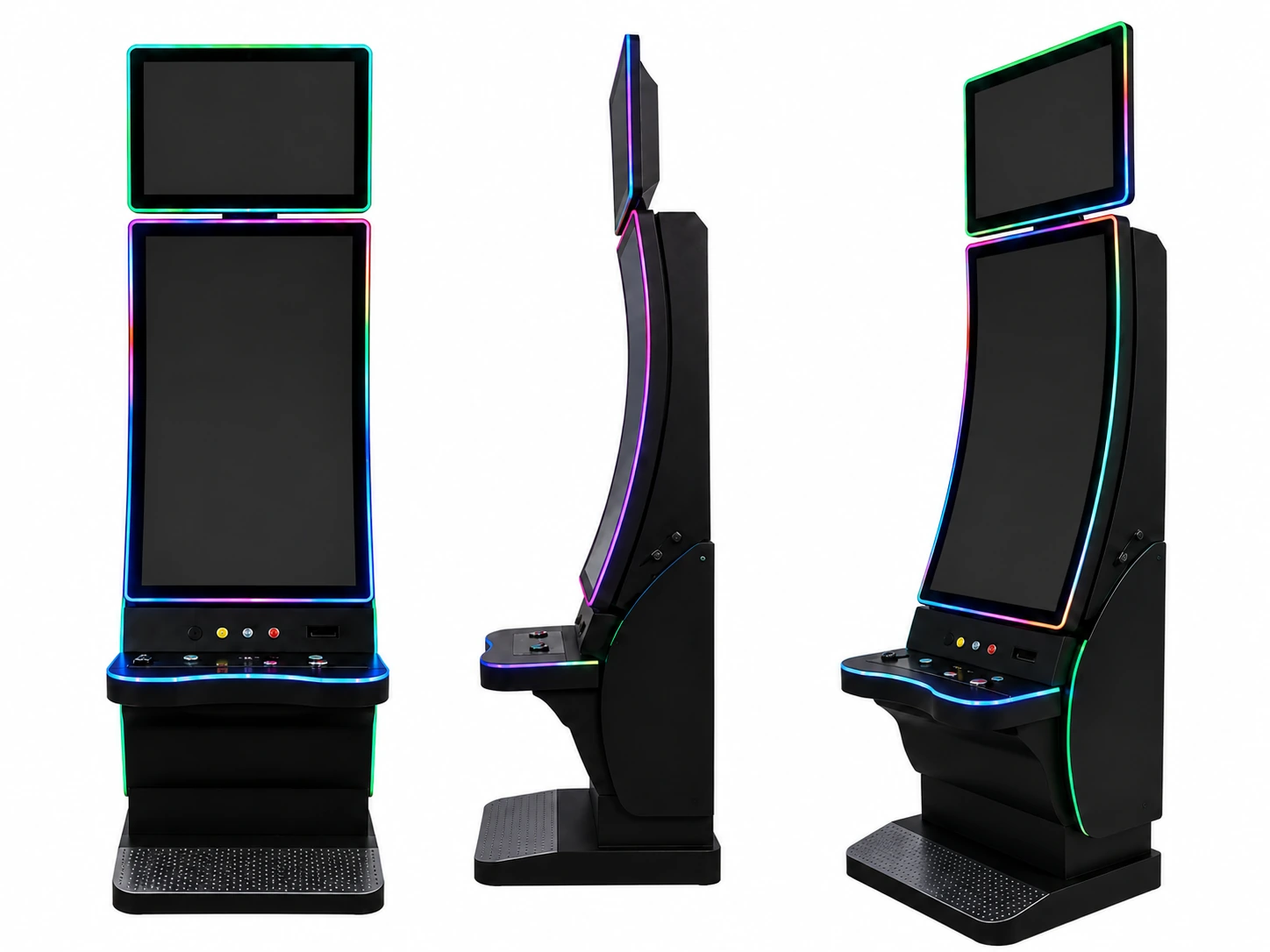

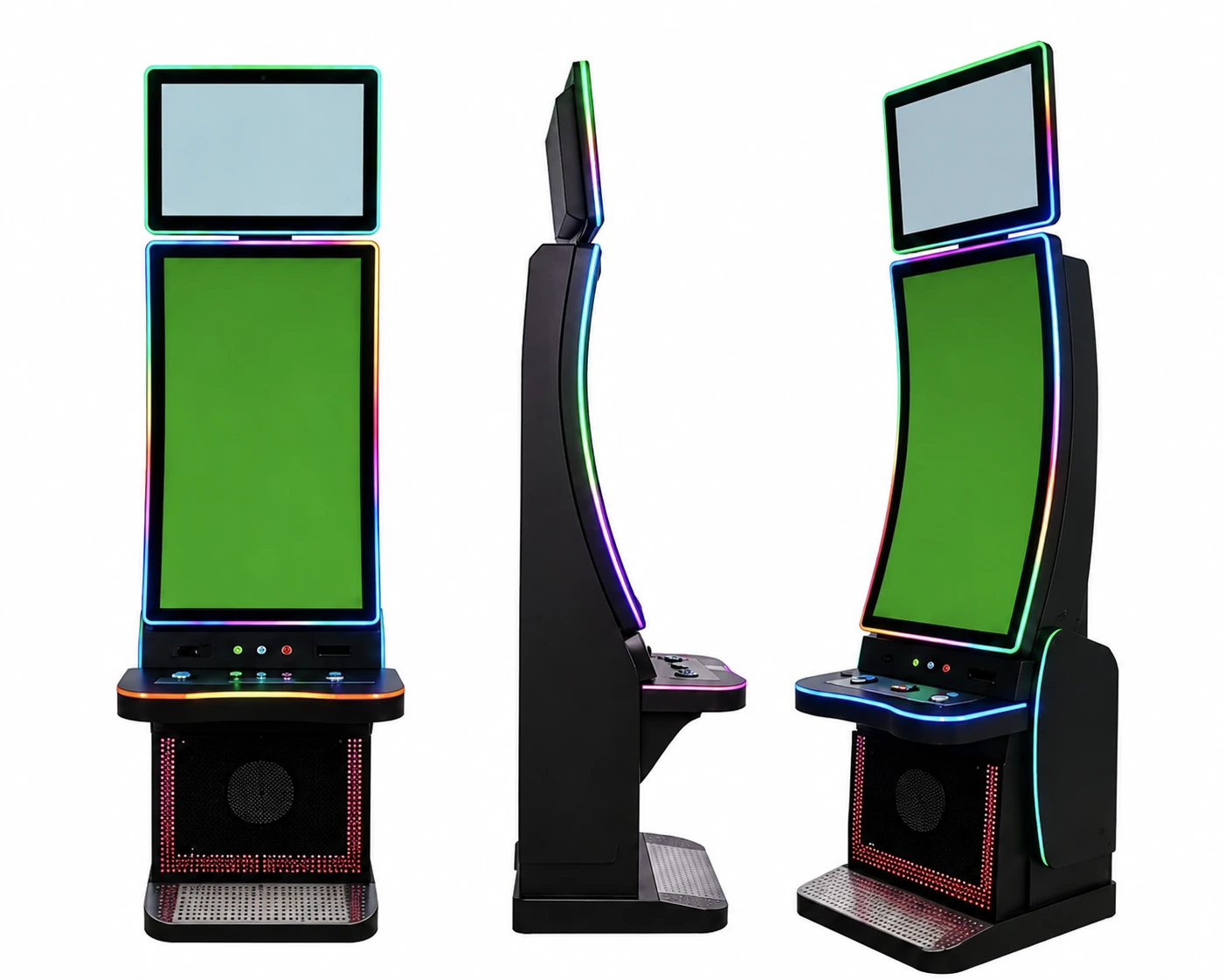

C-Shaped Curved Slot Machine Monitor
C-shaped, also referred to as C-type curved display, creates a continuous curved viewing area for modern casino and gaming cabinets.
Explore C-Shaped Curved Monitors
J-Shaped Curved Slot Machine Monitor
J-shaped, also referred to as J-type curved display, extends the screen around one side of the cabinet, providing a larger visual surface and supporting side-area interaction.
Explore J-Shaped Curved Monitors

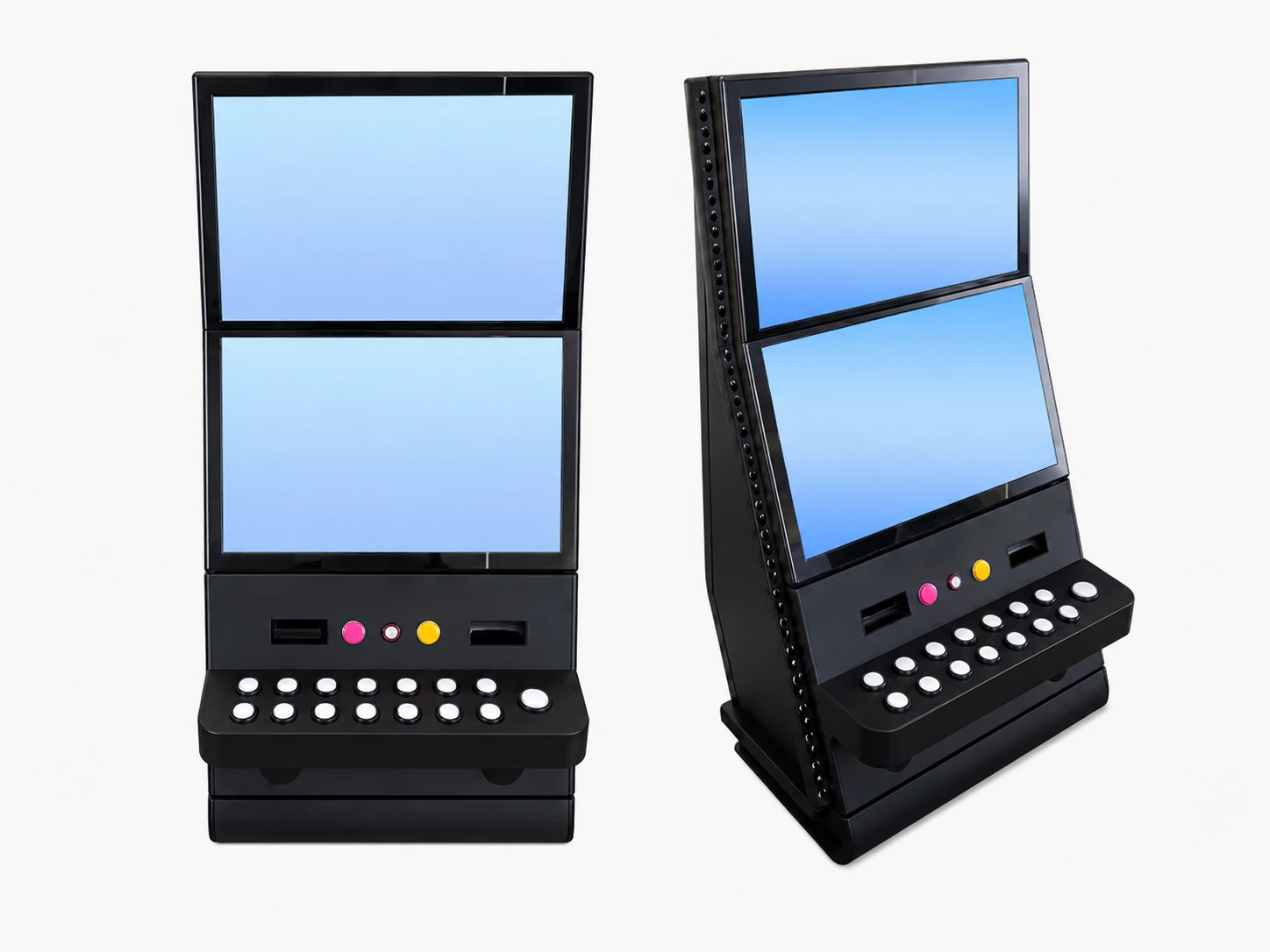

Flat Touch Slot Machine Monitor
Flat touch displays are suitable for standard cabinet openings, secondary screens and replacement projects that do not require a curved panel.
Compare Flat Touchscreen Monitors

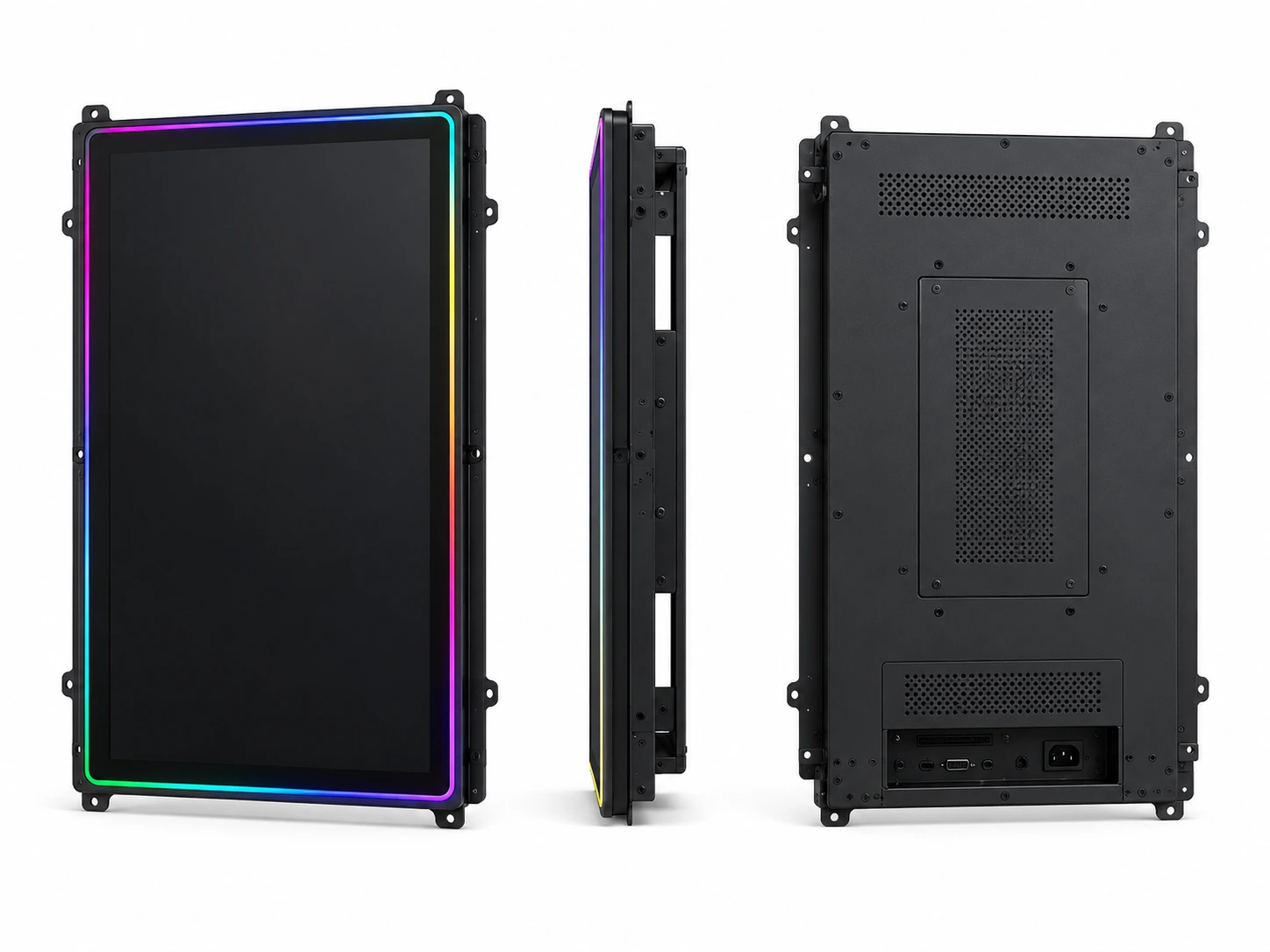

Custom Vertical & Open-Frame Gaming Display
XFC can evaluate vertical, portrait and open-frame display requirements according to the cabinet opening, mounting points, active display area, system interface and power input.
Explore Open-Frame Touch Monitors

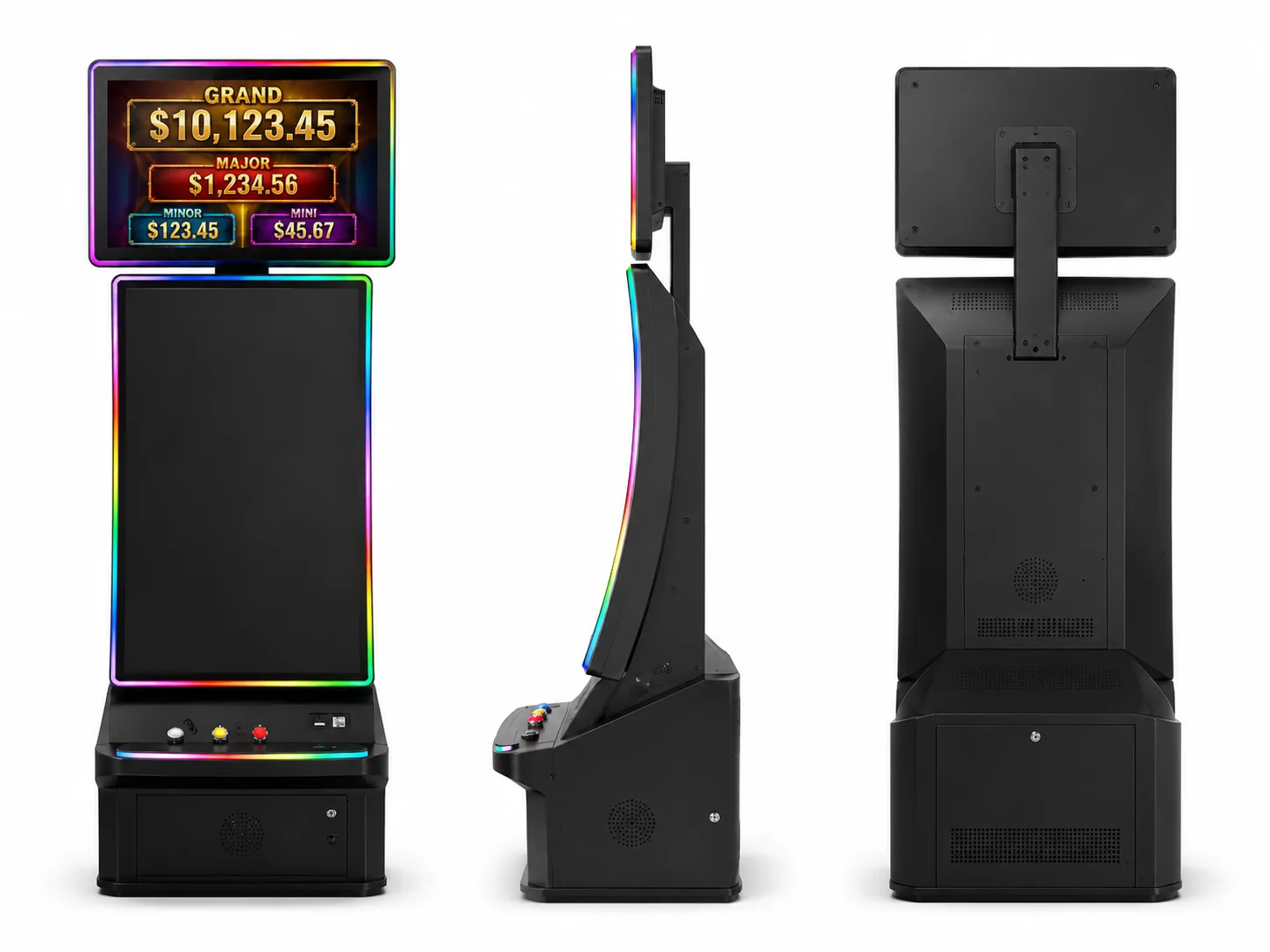

Upper Screen and Jackpot Display Solutions
Upper screens, topper displays and progressive jackpot displays can be evaluated according to the required dimensions, orientation, viewing distance, brightness, resolution, interface and installation structure.
Compare All Curved Monitor OptionsSlot Machine Monitor Model Availability Matrix
| Screen Shape | Available Size | Curvature/Radius | Resolution | Brightness (nits) | Video Input | Touch Interface | Input Voltage | Housing |
|---|---|---|---|---|---|---|---|---|
| C-Shaped Curved | 32″, 43″, 49″, 55″ | R1500 (Typical) | FHD (43″+ Optional 4K) | 300 - 500 nits (Selected Models) | Confirmed by model | USB | AC 220V | Metal |
| J-Shaped Curved | 43″, 49″, 55″ | Custom Profile | FHD (43″+ Optional 4K) | 300 - 500 nits | Confirmed by model | USB | DC 24V or AC 220V | Metal |
| Flat Touch Display | 21.5″, 23.8″, 27″, 31.5″, 43″ | Flat | FHD | 250 - 400 nits | Confirmed by model | USB | Project-Specific | Metal / Open-Frame |
Available Configuration Options
4K resolution, high-brightness panels and sample orders from 1 unit are available on selected models. Final availability depends on screen size, panel supply, touch structure and the approved configuration.
Specifications vary by size, curvature, touch structure and cabinet requirements. Final specifications are subject to the approved model, drawing and project requirements.
Solve Common Gaming Cabinet Integration Problems
Cabinet and Curvature Mismatch
A monitor can have the correct diagonal size and still fail to fit because of its external dimensions, curvature, display depth or mounting points. XFC reviews the cabinet opening and mechanical profile before the final configuration is approved, allowing the sample to be evaluated against the actual installation structure.
Touch Area and Cover Glass Misalignment
A misalignment between the touch sensor, cover glass, and cabinet bezel can reduce the active interaction area. XFC validates the touch structure against the cabinet drawing to ensure accurate touch response and seamless integration.
Interface, System or Power Incompatibility
Standard monitors may not support the specific power voltage or signal interfaces required by the gaming computer. XFC selects the controller and power supply to match the cabinet's electrical requirements.
Brightness, Reflection and Thermal Conditions
High ambient light or limited ventilation can impact display visibility and lifespan. XFC evaluates brightness requirements and thermal conditions to select appropriate panels and mechanical housings.
Slot Machine Monitor vs. Regular Commercial Monitor
Slot Machine Monitor
- Cabinet IntegrationDesigned around the cabinet opening
- Screen ShapeFlat, C-shaped, J-shaped or custom
- Touch CustomizationCustom touch glass and active area
- Mounting StructureMetal housing or open-frame structure
- InterfacesProject-specific interfaces
- Power InputPower matched to cabinet requirements
- OrientationLandscape, portrait or custom
- Sample ApprovalMechanical and functional sample approval
- Volume ProductionProduction based on approved specifications
- Replacement SupportEvaluated from drawings and original-screen data
Regular Commercial Monitor
- Cabinet IntegrationStandalone finished product
- Screen ShapeMostly flat
- Touch CustomizationFixed touch structure
- Mounting StructureExternal monitor enclosure
- InterfacesStandard interfaces
- Power InputFixed power configuration
- OrientationPrimarily landscape
- Sample ApprovalStandard catalog product
- Volume ProductionStandard mass-produced configuration
- Replacement SupportLimited to matching an existing model
A regular monitor may be suitable for general viewing. A slot machine monitor must be selected around the cabinet, gaming controller, touch structure, power input and operating environment.
Check Whether You Need a Standard or Custom DisplayC-Shaped vs. J-Shaped vs. Flat Slot Machine Monitors
C-Shaped Curved
- Visual Form: Continuous curved main display area
- Touch Interaction: Follows the curved surface
- Installation Complexity: Requires accurate curvature and mounting data
- Available Sizes: 32″ to 55″

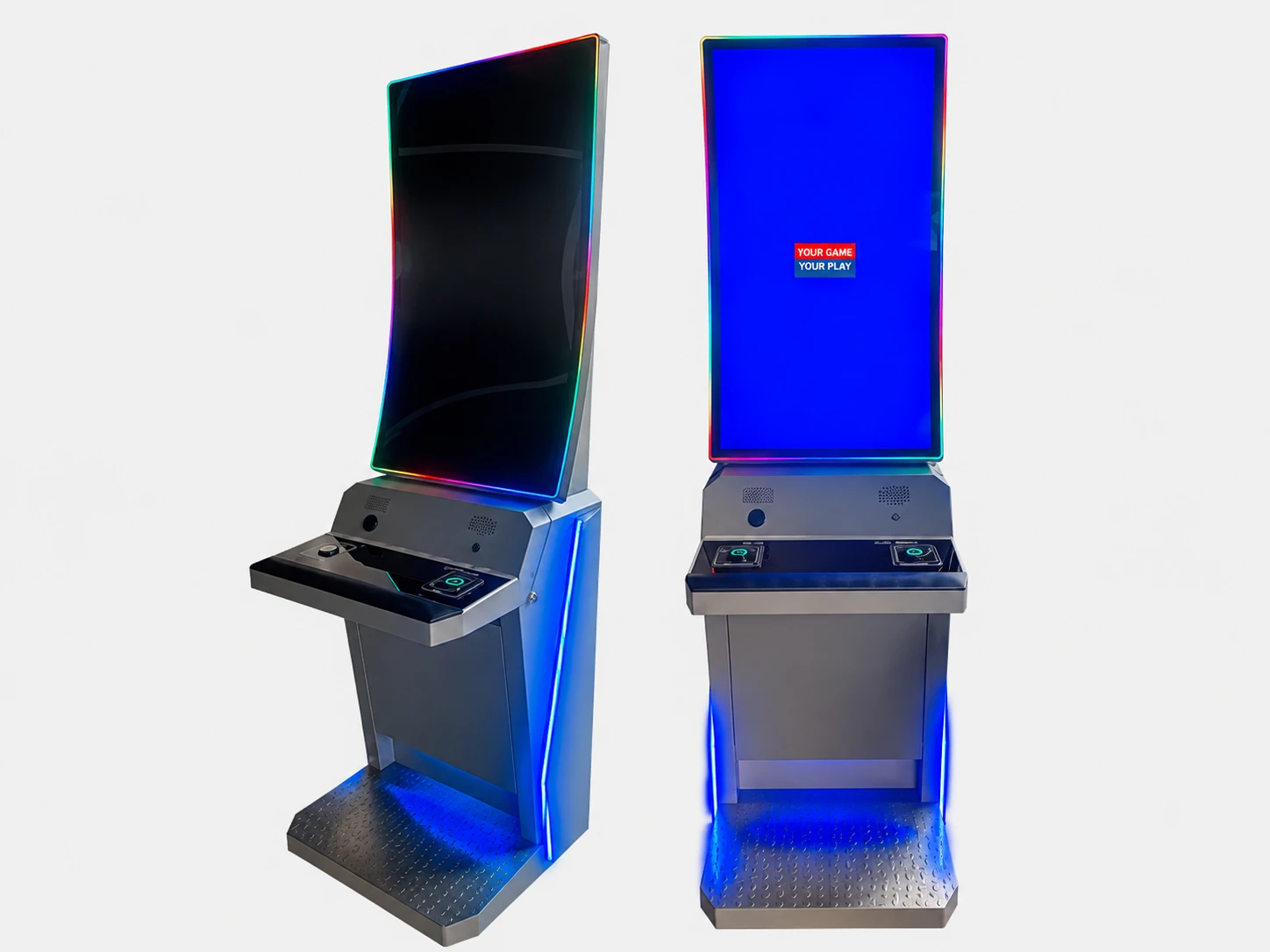

J-Shaped Curved
- Cabinet Design: Side-extension or wraparound cabinet
- Touch Interaction: Extended side control area
- Installation Complexity: Requires cabinet side-profile confirmation
- Available Sizes: 43″ to 55″
Flat Displays
- Cabinet Design: Conventional rectangular cabinet opening
- Touch Interaction: Standard flat plane
- Installation Complexity: Generally simpler to integrate
- Available Sizes: 21.5″ to 43″
Choose C-shaped for a continuous curved presentation, J-shaped for a cabinet with a side extension, and flat displays for conventional openings or replacement projects.
The final choice should be based on the cabinet drawing—not appearance alone.
How to Choose the Right Slot Machine Monitor
Choose a slot machine monitor by matching the cabinet dimensions, screen shape, active display area, touch structure, system output, interfaces, power input, lighting environment and expected operating schedule.
Cabinet profile
Overall and active dimensions
Touch and cover-glass structure
Resolution and refresh rate
Brightness and reflection
Interfaces and operating system
Power input and thermal conditions
Sample integration approval
Send These Details for a Faster Quote
- Cabinet Drawing or Installation Photo
- Required Screen Size
- Flat, C-Shaped, J-Shaped or Custom
- Touch Requirement
- Resolution
- Interface
- Power Input
- Estimated Quantity
How Do Touch Displays Support Casino Gaming Equipment?
A touch-enabled slot machine monitor combines game presentation and user input in one interface. It can reduce reliance on fixed mechanical controls and give equipment designers more flexibility when arranging menus, player controls and secondary functions.
Reliable integration requires the touch sensor, cover glass, controller, cabinet bezel and software coordinates to be validated as one system.
Touch performance depends on the approved panel, cover-glass structure, controller and software environment.
How to Select Resolution and Brightness
Full HD (1920 × 1080)
- Suitable for 1920 × 1080 system output
- Compatible with existing Full HD content
- Lower hardware requirements
- Controlled power consumption
4K (3840 × 2160)
- Higher visual detail
- Requires 3840 × 2160 system output
- Requires 4K-ready interface and content
- Recommended only when the screen size and viewing distance benefit from 4K
Standard-Brightness Configuration
Use a standard-brightness configuration when cabinet lighting and cover glass allow the display to remain clear without additional luminance or thermal demand.
High-Brightness Configuration
Consider a high-brightness panel when strong ambient lighting, tinted cabinet glass or the installation angle reduces perceived visibility. Brightness should be evaluated together with reflection control, viewing angle, heat dissipation and power requirements.
Applications for Slot Machine Monitors & Displays

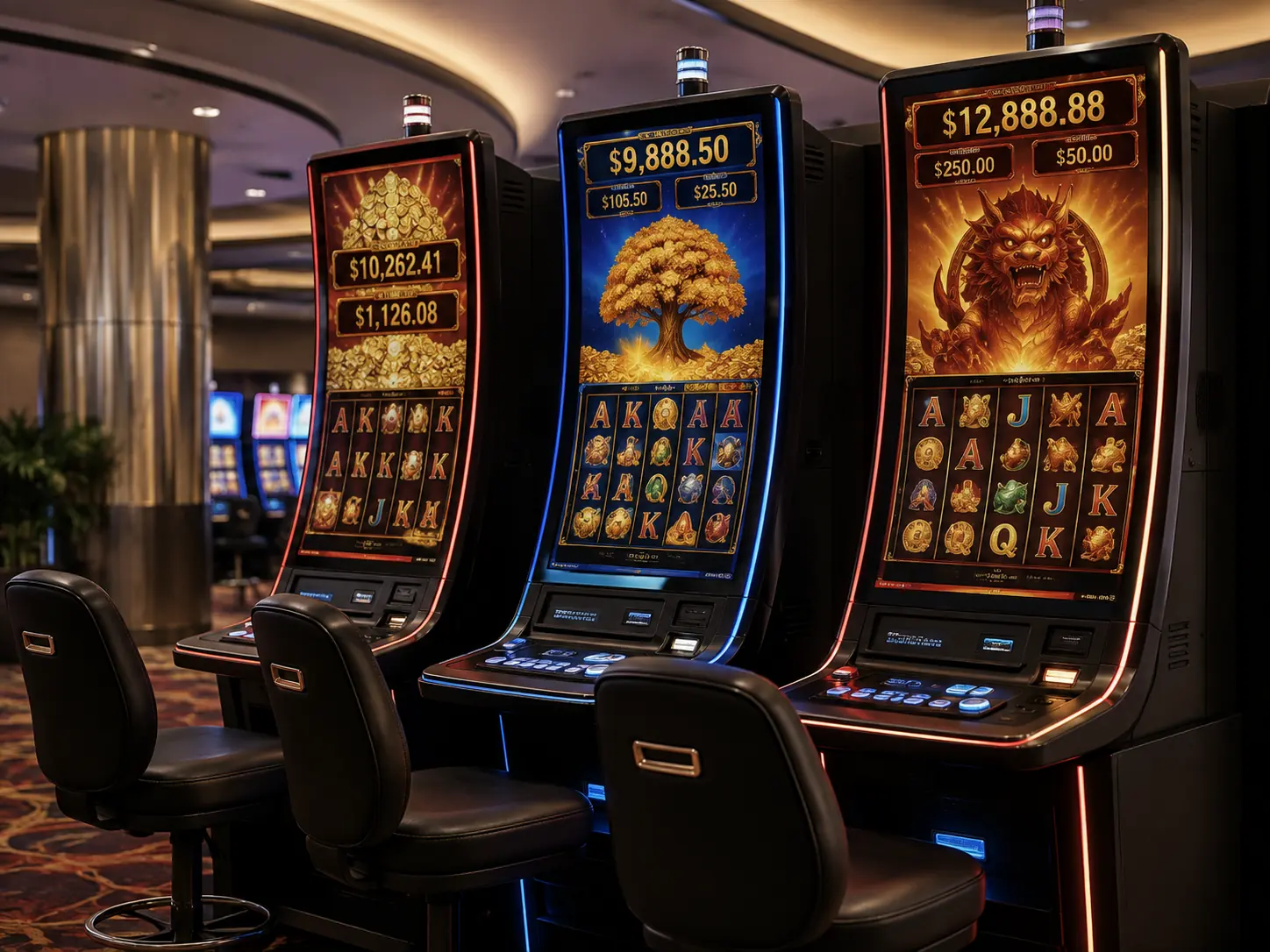

Main Slot Machine Screen
Curved or flat main screens designed around the cabinet structure and gaming system.

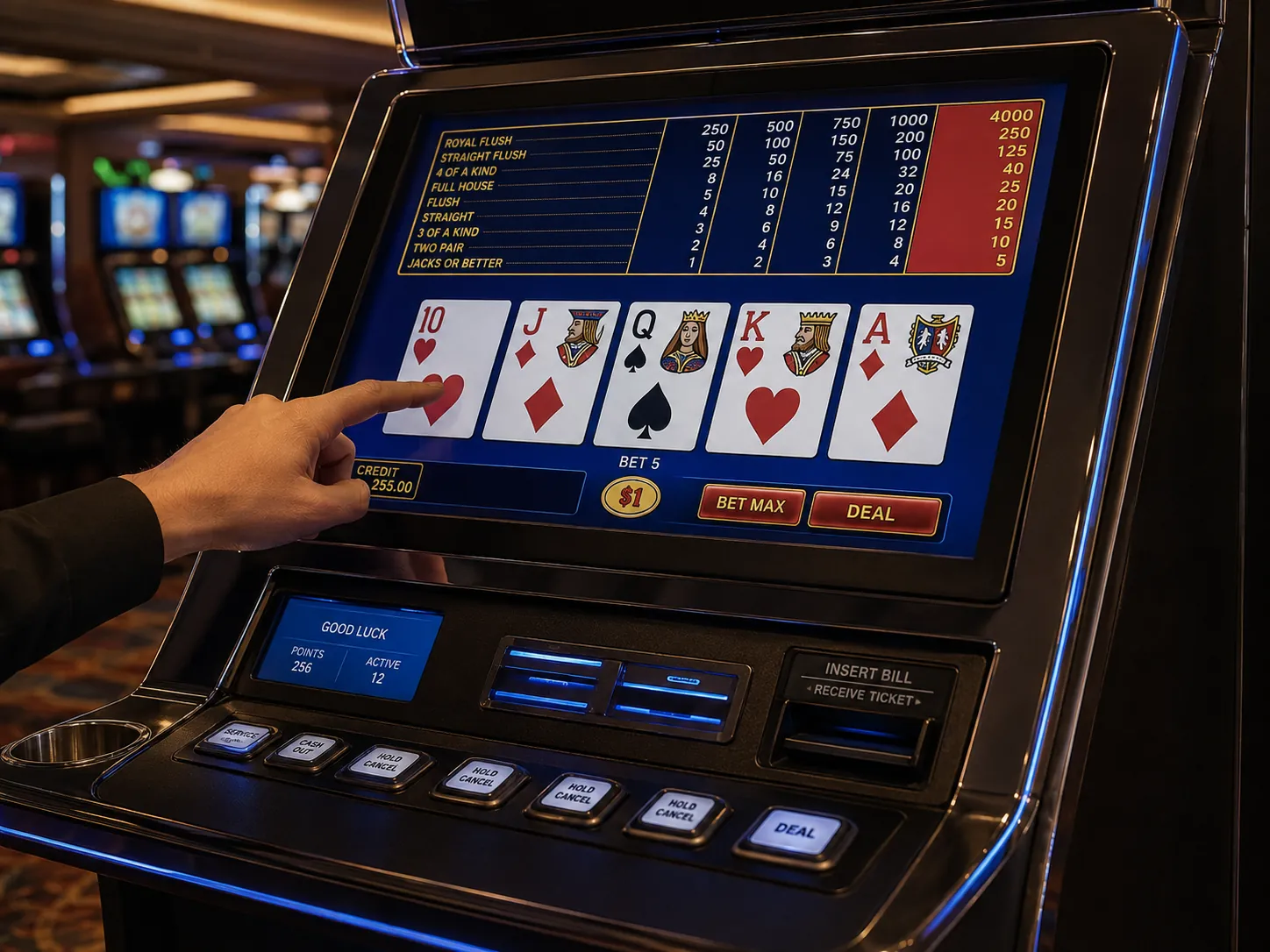

Poker Machine Monitor
Touch-enabled displays for poker and electronic gaming machine interfaces.

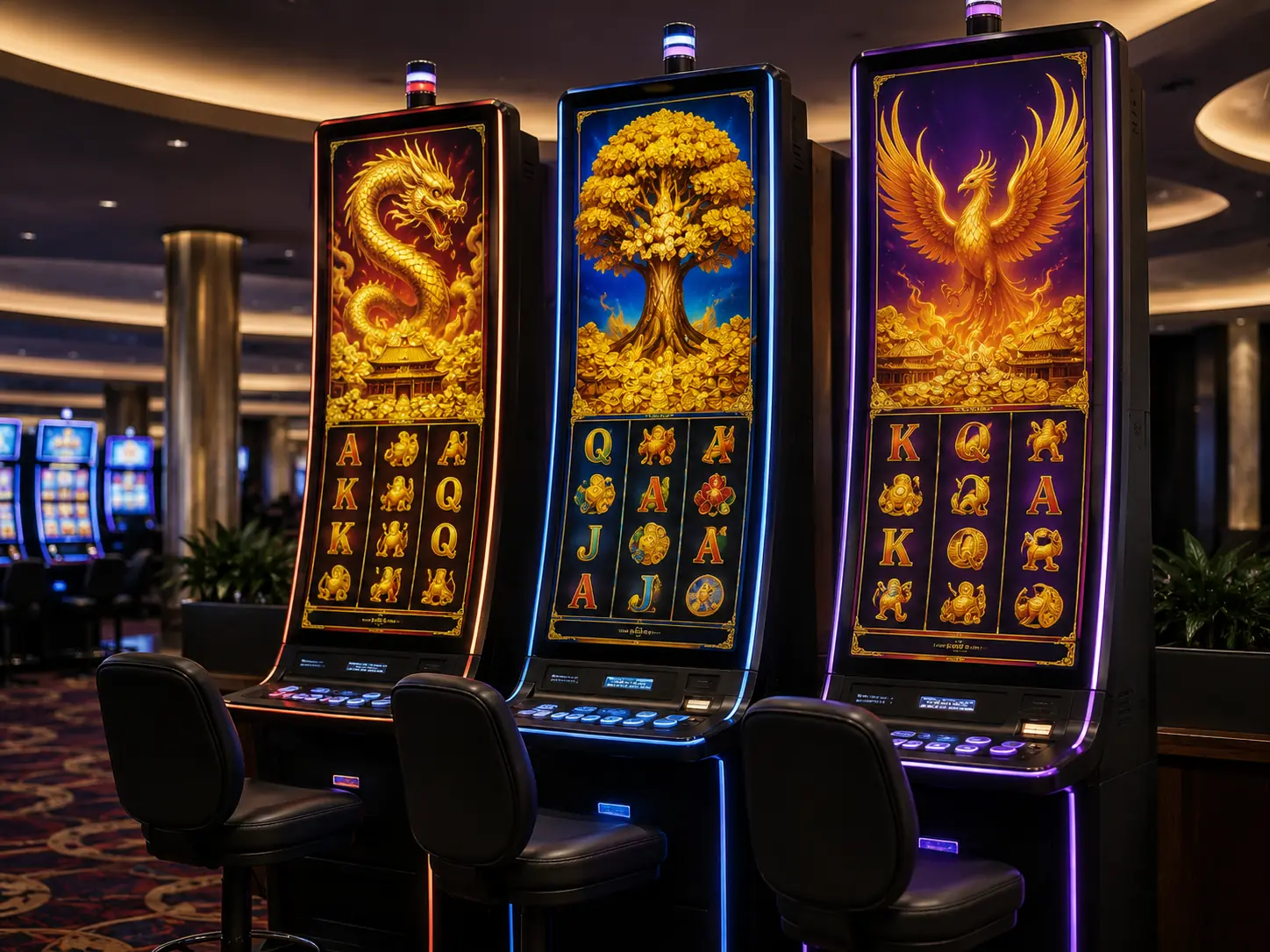

Vertical Gaming Cabinet
Portrait displays for tall cabinets and vertically arranged game interfaces.

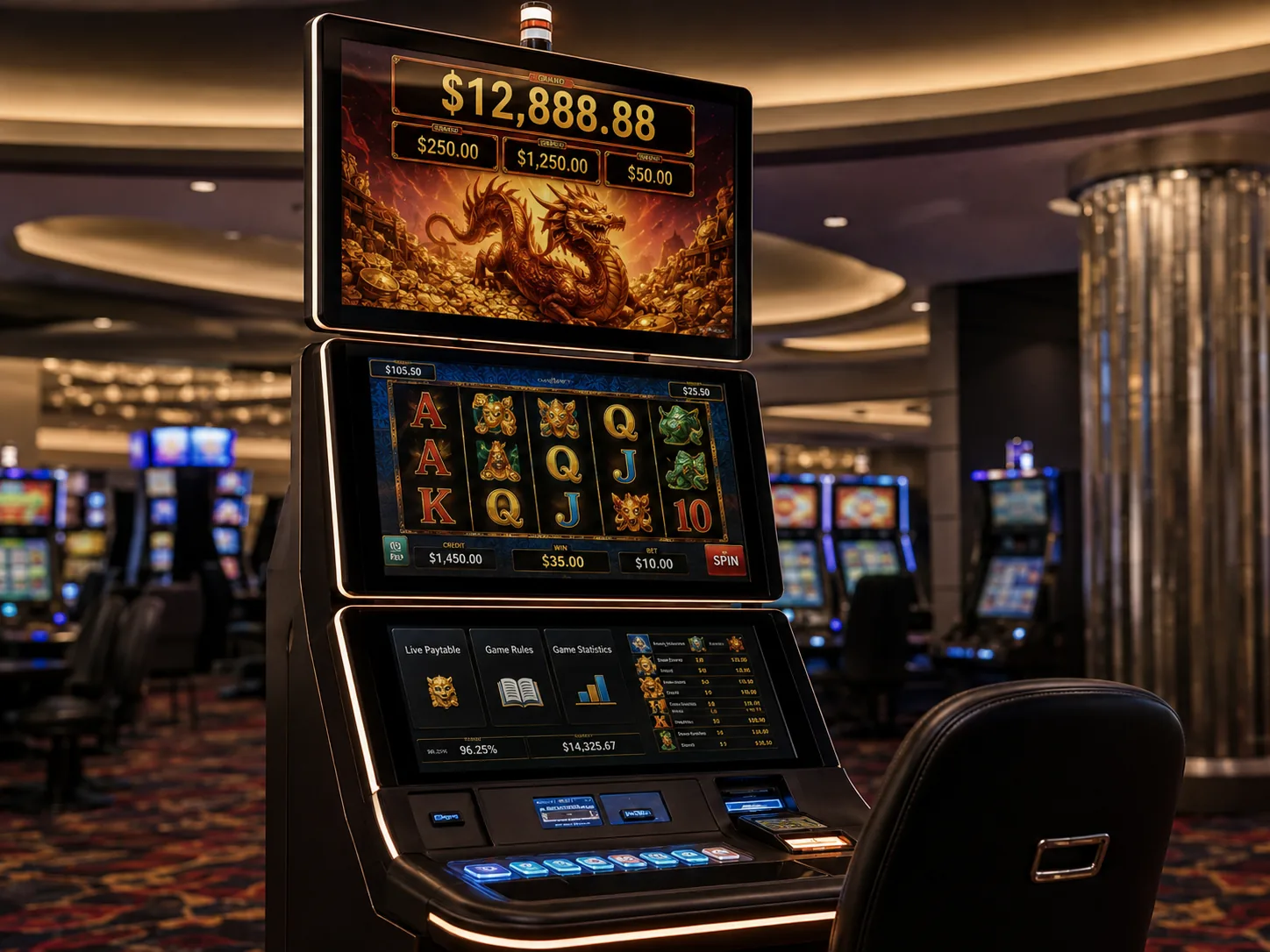

Multi-Screen Gaming System
Main, secondary and upper displays selected according to the role of each screen.

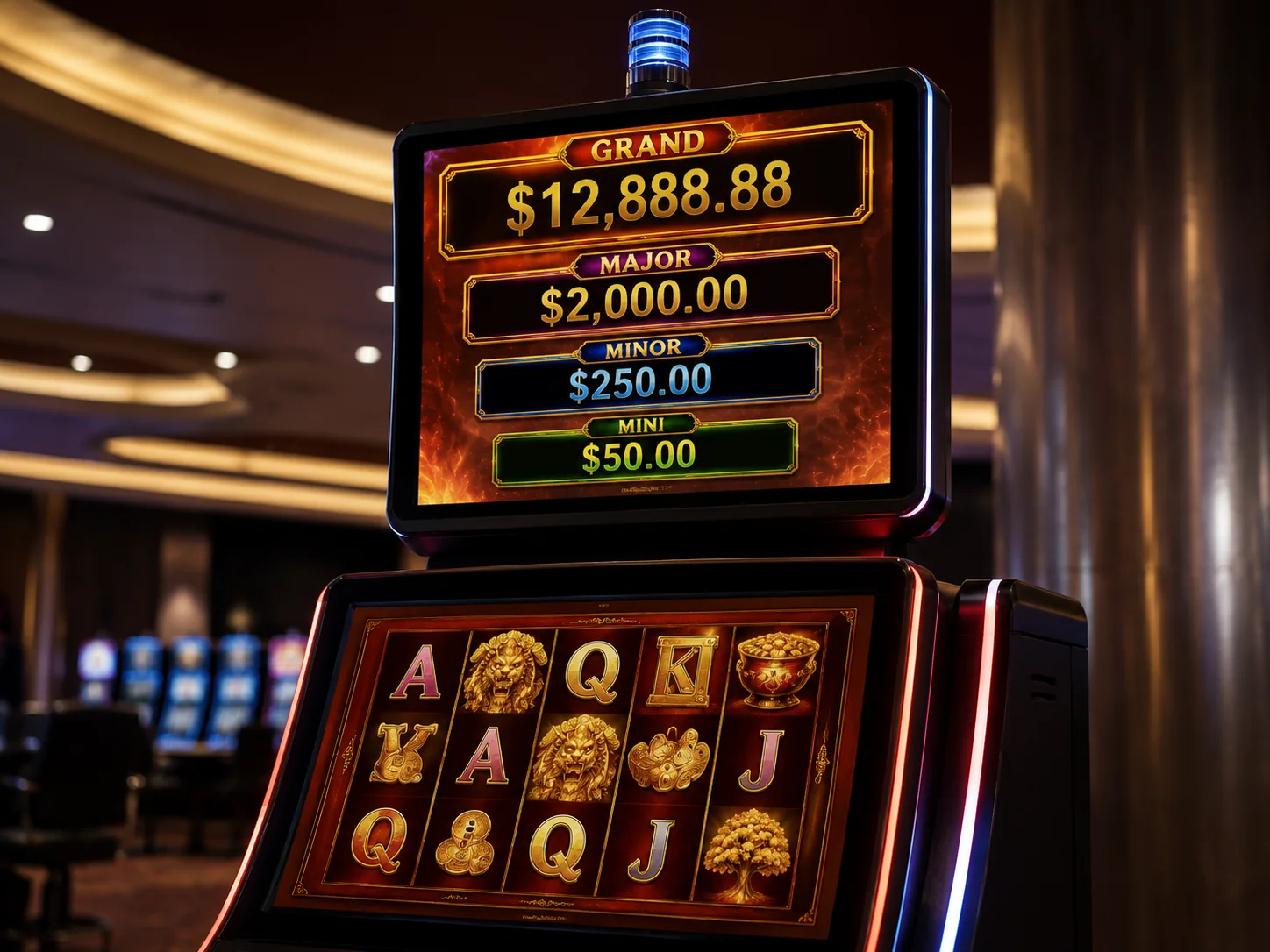

Upper and Jackpot Display
Custom displays for game information, progressive jackpot values and promotional content.
Replacement Gaming Monitor
Evaluated from drawings and original-screen data for seamless cabinet updates.
From Cabinet Drawing to Approved Production
Requirement Review
Collect the screen size, cabinet drawing, application, quantity, interface, touch and power requirements.
Mechanical Evaluation
Review the internal space, mounting points, curvature and cover-glass structure.
Configuration Selection
Select the panel, touch system, controller, interfaces, power supply and housing.
Sample Production
Prepare a prototype or sample according to the confirmed requirements.
Sample Testing and Approval
Check mechanical fit, image output, touch response and interface compatibility.
Mass Production
Produce according to the approved sample and specifications.
Inspection and Packing
Complete functional, appearance and packing checks.
Delivery and After-Sales Support
Provide project documentation and order-related technical support.
Manufacturing and Inspection for Custom Gaming Displays
Lucky-XFC supports custom projects from product selection and engineering confirmation through sample production, 100% inspection and shipment.
13+ Years of Display Experience
Focused on touch displays, curved screens and integrated display solutions.
Product and Drawing Review
Engineering, production, inspection and project support coordinated through one supplier.
Sample Confirmation
Support from requirement review and sampling to inspection and mass production.
Display and Touch Inspection
100% inspection process for every order before shipment.
Sample Orders From 1 Unit
One-unit samples are available for selected standard configurations. Production MOQ may vary for custom panels, cover glass, housing and tooling.
OEM and ODM Support
Custom structure, touch, interfaces, housing, logo and project-specific configurations.
Mechanical Verification
Ensuring perfect fit with your gaming cabinet constraints.
Packing Inspection
Secure packaging methods designed for international freight safety.

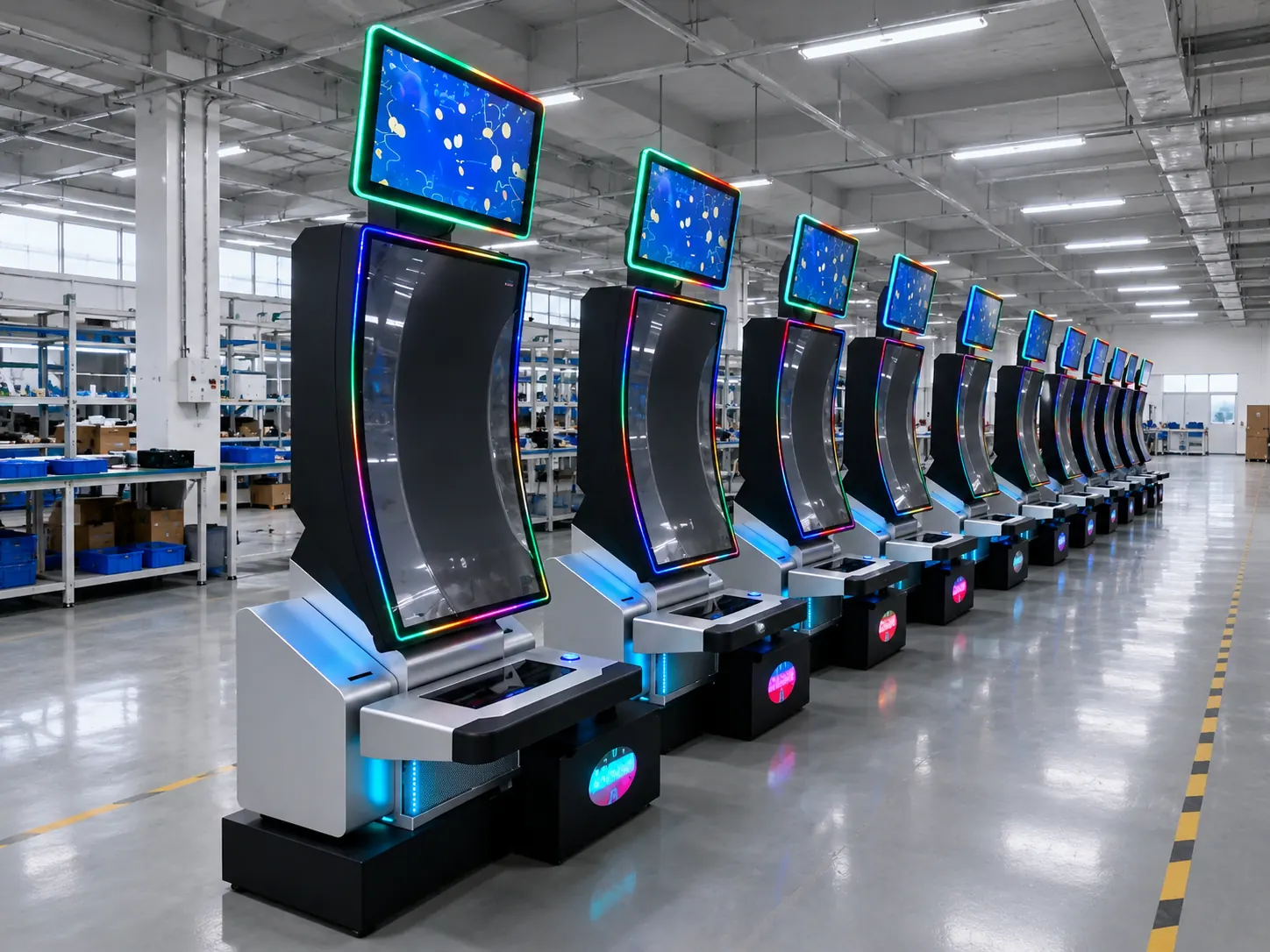

Inside the Factory: Production & Quality Testing
Watch our brief 45-second overview showcasing the rigorous assembly and testing procedures at our facility. See firsthand how our QC team conducts 100% inspections to verify touch response, display quality, interfaces and appearance according to the approved specifications.
Compliance Documents by Configuration
Compliance documents are confirmed according to the selected monitor configuration, destination market and applicable product scope. Certification and protection ratings must be verified for the specific model before ordering.
ISO 9001:2015
CE Certification
FCC Certification
RoHS Compliance
IP56/IP65/IP67/IK10
Slot Machine Monitor FAQ
What is a slot machine monitor?
Are slot machine monitor and slot machine display the same?
What sizes and screen shapes are available?
What is the difference between C-shaped and J-shaped monitors?
When should I choose 4K or high brightness?
Can XFC evaluate an existing monitor replacement?
Can I order one sample before production?
What information is needed for a quotation?
Discuss Your Slot Machine Monitor Project
Send the screen size, cabinet type and expected quantity. For a replacement or custom cabinet, include the original monitor information or mechanical drawing so the display configuration can be reviewed against the installation requirements.
