J-Curved Touch Monitor for Slot Machines
Designed for casino gaming equipment, XFC’s J-Curved Touch Monitor features a vertical viewing area, curved interaction zone, PCAP touch, and customizable 43, 49, or 55-inch configurations.
XFC supplies the curved display and touch solution for equipment integration—not a complete slot machine.
What Is a J-Curved Touch Monitor?
A J-Curved Touch Monitor is a display that combines a largely vertical viewing surface with a curved lower section, creating a J-shaped side profile. In slot machine and casino gaming cabinets, this shape can align the display with the enclosure, bring the interactive area closer to the user and create a more continuous visual surface.
Boundary Note: It is a display and touch component for OEM equipment integration. It is not a complete gaming or gambling machine.
Built to Solve the Hard Parts of Curved Display Integration
A curved screen must fit the cabinet, touch accurately and remain serviceable—not simply look different from a flat monitor.
1. Cabinet and Curve Mismatch
Problem: A generic curved monitor may not align with the cabinet opening, mounting points or bezel.
XFC approach: Evaluate the cabinet drawing, outer dimensions, curve direction, mounting space and cable clearance before confirming the design.
2. Inconsistent Touch Along the Curve
Problem: Poor touch integration can create inaccurate or unstable interaction near the curved area.
XFC approach: Use a project-matched PCAP touch solution and verify touch response across the active surface during sample testing.
3. Image Distortion & Uneven Appearance
Problem: Improper panel bending or cover-glass integration can affect image consistency and the finished appearance.
XFC approach: Control the curved structure and validate the complete display assembly instead of treating the panel, touch layer and housing as unrelated parts.
4. Heat During Continuous Operation
Problem: Casino and gaming cabinets may operate for extended periods with limited ventilation.
XFC approach: Match the metal housing, controller, ventilation and internal layout to the cabinet’s operating conditions.
5. Interface and System Integration
Problem: The display may need to connect with an industrial computer, gaming controller, camera, reader or other equipment.
XFC approach: Evaluate HDMI, USB, RJ45, RS232 and other project-specific connection requirements before production.
6. Prototype-to-Production Variation
Problem: A sample that fits correctly is not useful if subsequent batches are inconsistent.
XFC approach: Confirm the approved sample, inspection criteria and production configuration before mass production.
Why Choose a J-Curve for a Slot Machine Display?

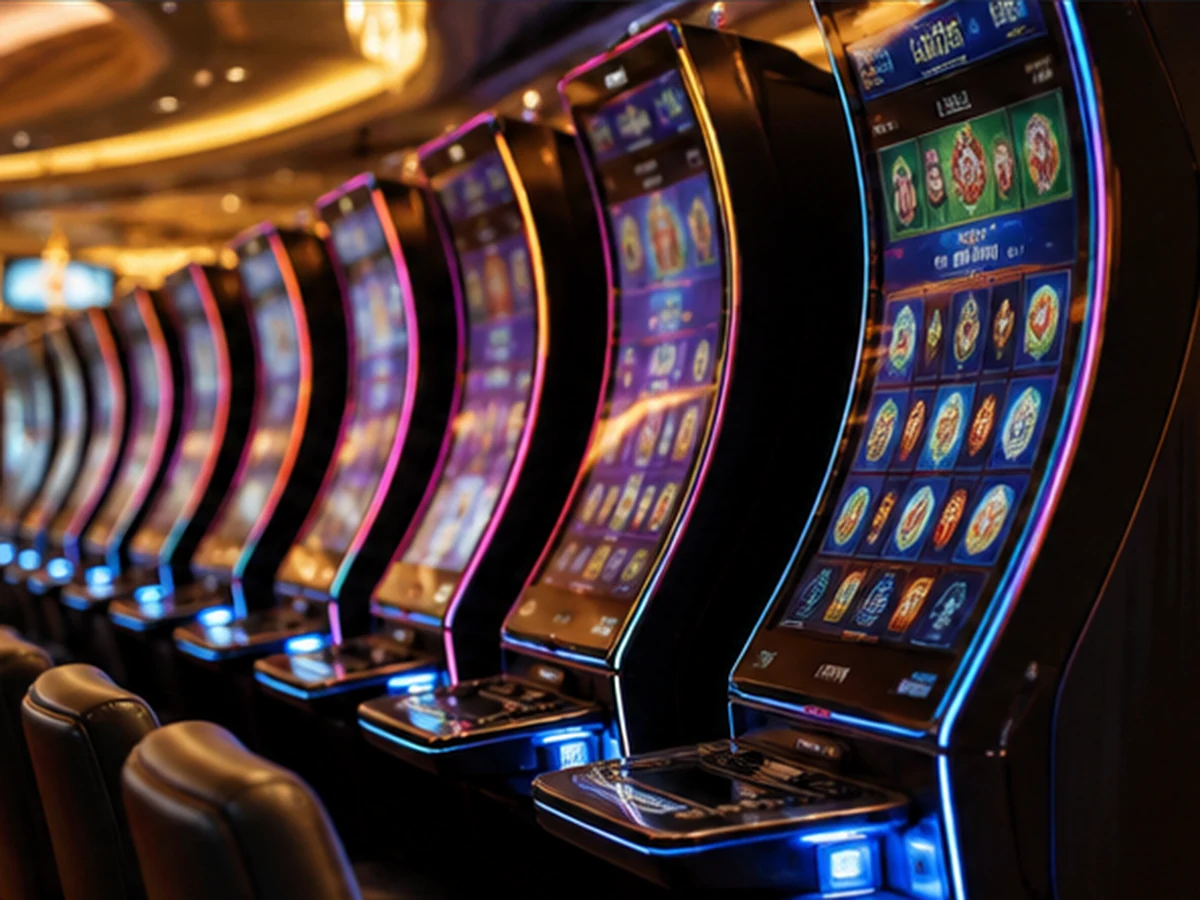

Curved Interaction Zone
The curved lower section can position interactive controls closer to the user while preserving a larger upright area for game content.
Cabinet-Aligned Design
The J-shaped profile can follow the geometry of a purpose-built gaming cabinet more naturally than a standard flat monitor.
Continuous Visual Surface
A correctly integrated curved display creates a more unified transition between game content, touch controls and the cabinet structure.

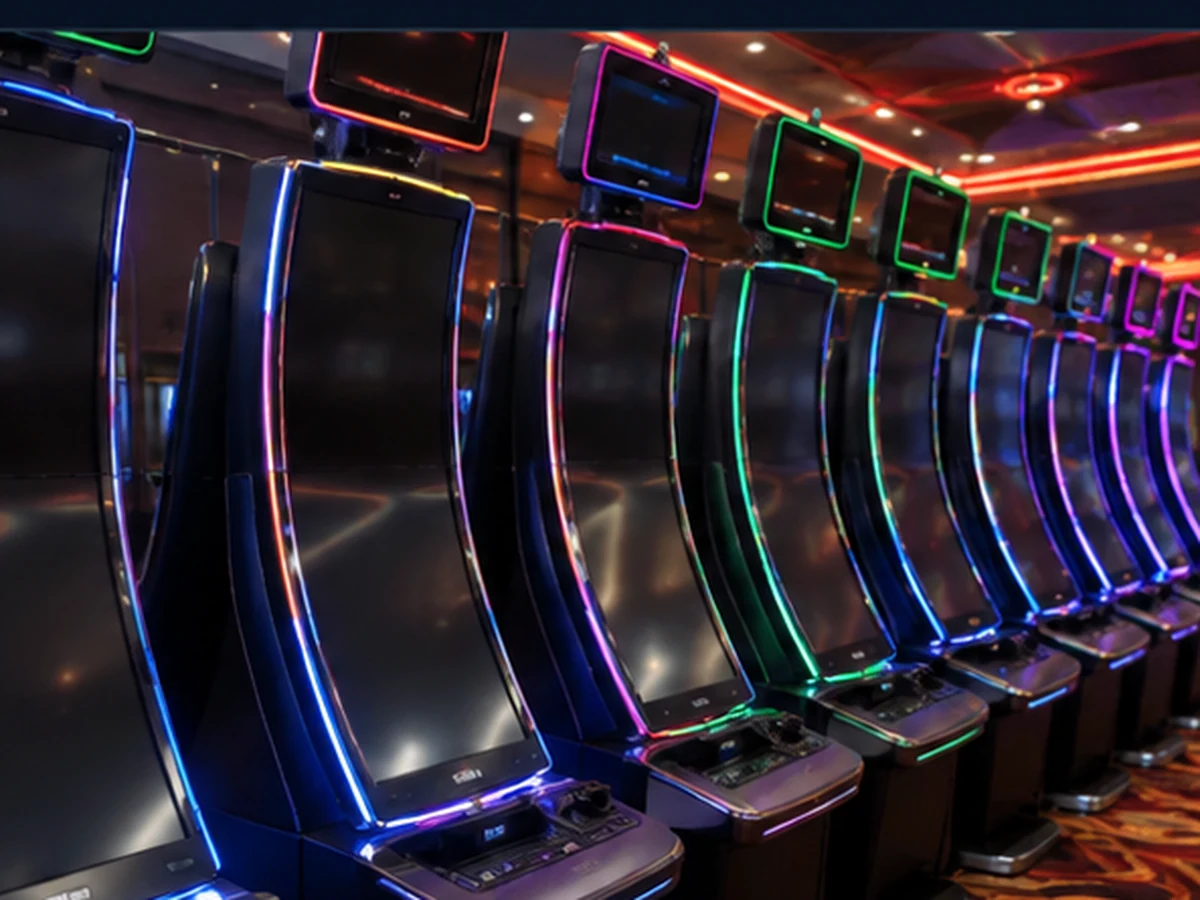

OEM Design Flexibility
The screen structure, curvature, housing, interface layout and power configuration can be evaluated around the equipment rather than forcing the equipment around a retail monitor.
J-Curved Touch Monitor Sizes
Choose a base size and let XFC evaluate the curve, enclosure, power and interface requirements for your cabinet. The following values are reference catalog configurations; final specifications must be confirmed in the approved quotation and drawing.
43-Inch
LD430-QM-DR-2K01
- Display: 16:9, 1920 × 1080
- Touch: PCAP
- Housing: Metal housing
- Power: DC 24V (Ref)
- Weight: 17.5 kg
- Carton: 1110×310×700 mm
Compact or medium-size slot machine cabinets requiring a curved lower interaction area.
49-Inch
LD490-QM-DR-2K01
- Display: 16:9, 1920 × 1080
- Touch: PCAP
- Housing: Metal housing
- Power: AC 220V (Ref)
- Weight: 28 kg
- Carton: 1190×365×730 mm
Gaming cabinets requiring a larger visual area without moving to the maximum standard size.
55-Inch
LD550-QM-DR-2K01
- Display: 16:9, 1920 × 1080
- Touch: PCAP
- Housing: Metal housing
- Power: AC 220V (Ref)
- Weight: 34 kg
- Carton: 1360×380×840 mm
Large-format casino gaming cabinets and immersive equipment designs.
Need a 4K J-Curved Touch Monitor?
A 3840 × 2160 configuration may be evaluated for suitable projects. Availability depends on screen size, panel supply, curvature, controller, content source and cabinet design. Ask XFC to validate the complete configuration before specifying 4K.
Check 4K Project FeasibilityJ-Curved Touch Monitor Specifications
| Product Type | J-shaped curved capacitive touch monitor |
|---|---|
| Standard Sizes | 43, 49 and 55 inches |
| Standard Resolution | 1920 × 1080 |
| Custom Resolution | 3840 × 2160 subject to size, panel and project feasibility |
| Aspect Ratio | 16:9 reference configuration |
| Touch Technology | Projected capacitive touch |
| Housing | Metal housing |
| Curve | J-type profile; project-specific curvature and cabinet matching available |
| Installation | Integrated into a custom gaming, kiosk or equipment cabinet |
| Power | Reference catalog configuration varies by size; regional and project-specific power must be confirmed |
| Interface Options | HDMI, USB, RJ45 and optional project-specific interfaces such as RS232, subject to configuration |
| System Integration | Compatible display or all-in-one configurations can be evaluated for Windows, Android or Linux projects |
| Display Options | LED backlight, high-brightness and anti-glare options subject to configuration |
| Additional Options | Speakers, controller, cable layout, cover glass, logo, housing and mounting customization |
| Operation | Continuous-operation projects can be evaluated according to cabinet ventilation and the approved configuration |
| MOQ | From 1 unit |
| Quality Control | 100% inspection; aging and functional testing according to the confirmed product configuration |
Specifications are configuration-dependent. Final active area, outer dimensions, curve, brightness, touch points, interface layout, power, environmental limits and compliance requirements must be confirmed before production.
Engineered Around the Gaming Cabinet
Precision Curved Structure
XFC’s published curved-display capability includes ±0.2 mm precision bending control. Final tolerances must be stated in the approved project drawing.
Responsive PCAP Touch
Projected capacitive touch supports a clean glass surface and smooth interaction. Touch-point count, cover-glass thickness and special touch requirements must be confirmed for each project.
Metal Housing & Thermal Planning
The metal structure supports cabinet integration and allows the controller, cable routing and heat-dissipation design to be planned as one assembly.

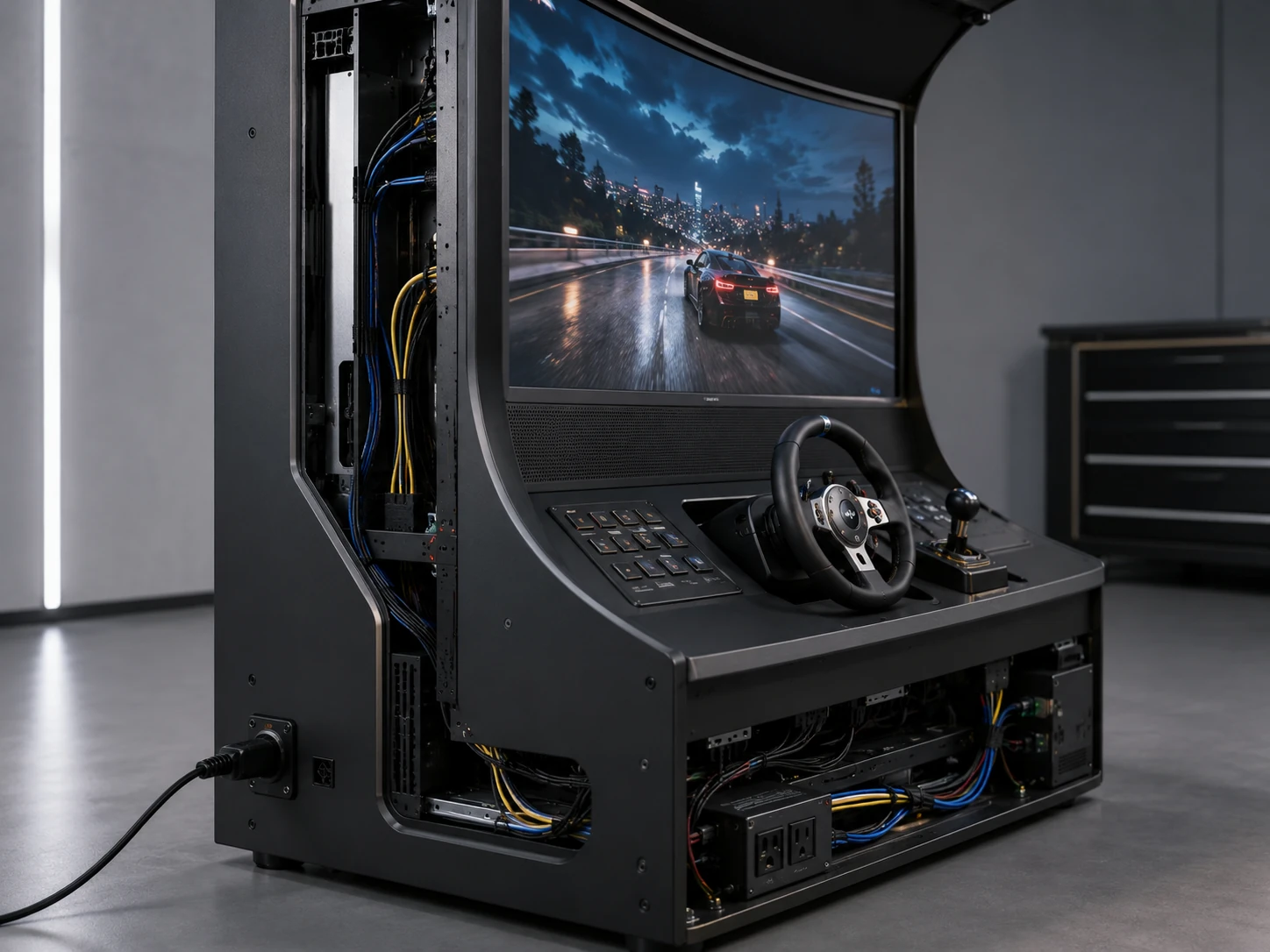

Custom Interfaces and Power
Interface location, cable direction, controller and power input can be evaluated according to the internal cabinet layout.
OEM/ODM Integration
Customize size, curvature, touch, cover glass, housing, mounting, interfaces, logo and compatible system configuration.
Discuss Your Custom ConfigurationWhere J-Curved Touch Monitors Fit

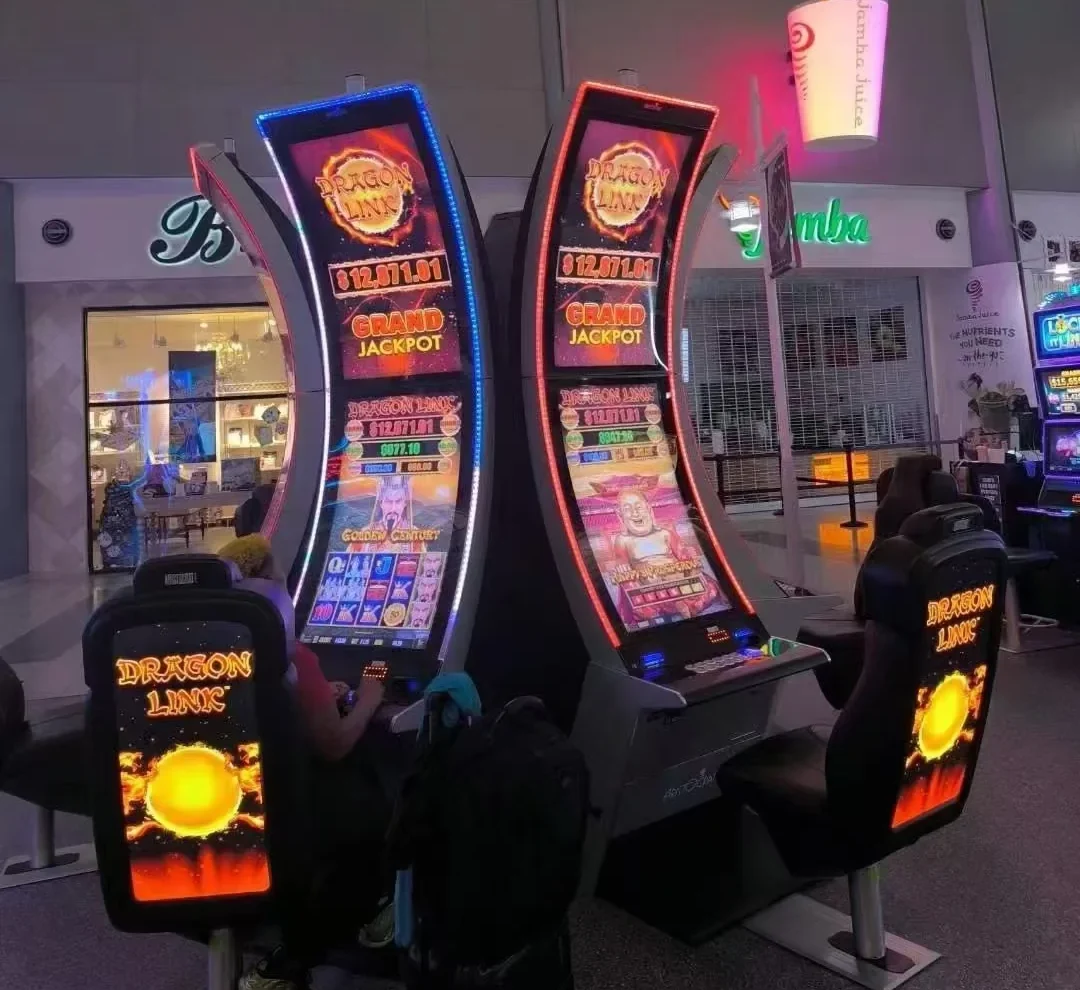

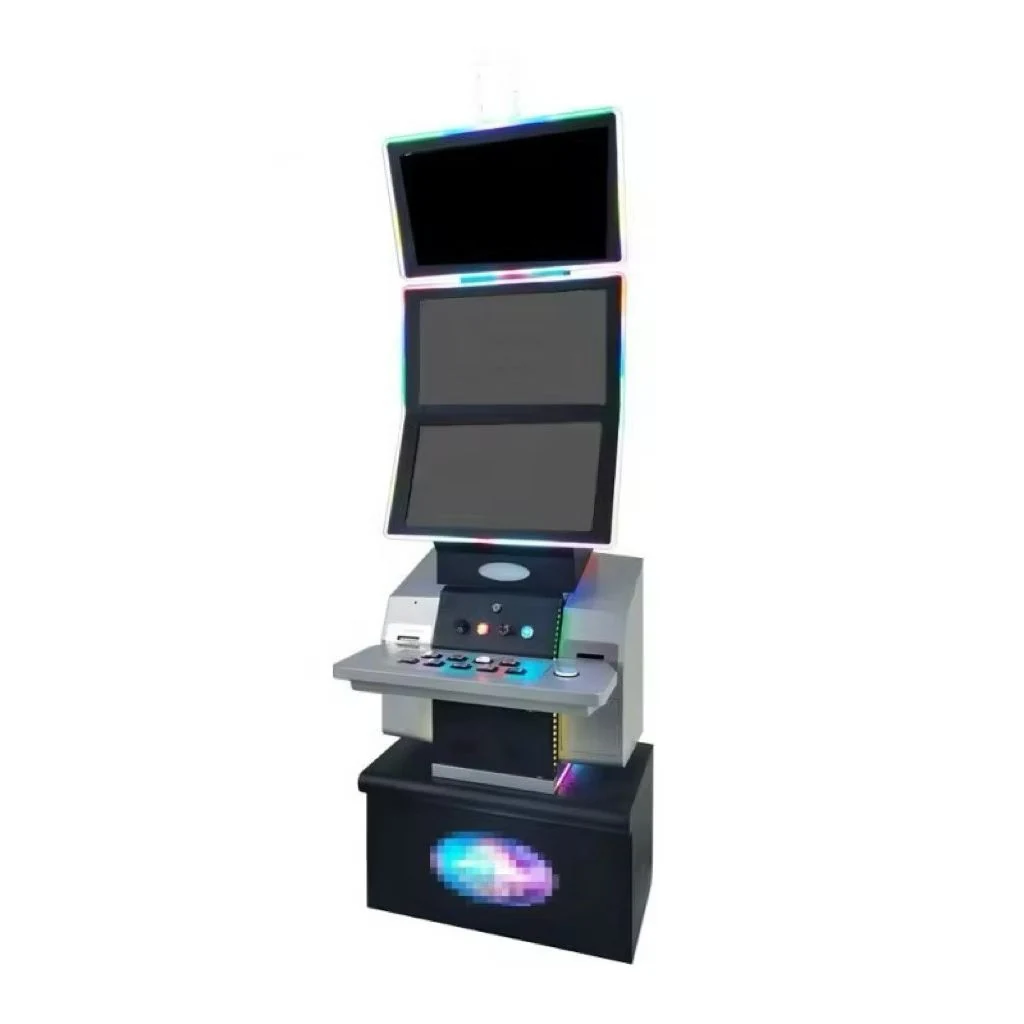

Slot Machine Display
Use the J-Curve Slot Machine Monitor as the main interactive display inside a purpose-built gaming cabinet. See custom slot machine display solutions.
Casino Gaming Monitor
Integrate the curved touch monitor into new casino gaming equipment where screen shape, touch position and cabinet appearance must be developed together.
Poker & Gaming Machine Screen
Use the same product concept for international gaming equipment projects that describe the display as a poker machine screen or gaming machine monitor.
Custom Kiosk or POS Enclosure
A J-Type Curved Touch Screen can also be evaluated for specialized kiosk or POS enclosures when the cabinet genuinely requires the J-shaped profile. It is not positioned as a generic desktop POS monitor.
Note: XFC provides display, touch and integration hardware. Game software, wagering systems and complete regulated gaming machines are outside the scope of this product page.
From Cabinet Drawing to Production-Ready Display
Share Your Requirements
Provide the target screen size, application, quantity, destination market and project schedule.
Submit the Cabinet Drawing
Include the opening dimensions, curve direction, radius or profile, mounting points, internal clearance and cable direction.
Confirm the Display Configuration
Define resolution, touch requirements, brightness, cover glass, interface, power, controller and system integration.
Build and Test the Sample
Evaluate physical fit, display performance, touch response, interface communication, heat and cable routing.
Approve the Final Sample
Freeze the approved drawing, BOM, appearance, test criteria and packaging requirements.
Begin Mass Production
Complete production, inspection, aging test, functional verification and shipment preparation according to the approved configuration.
What Should You Look for in a High-Quality J-Curved Touch Monitor?
A high-quality J-Curved Touch Monitor should match the cabinet geometry, maintain stable touch response across the curved surface, provide the required resolution and brightness, use suitable interfaces and power, manage heat during extended operation and remain consistent from the approved sample through production.
- Accurate outer dimensions and curve profile
- Stable touch performance across the active area
- Clear resolution and brightness specifications
- Suitable cover glass and surface treatment
- Correct power, controller and interface layout
- Practical ventilation and service access
- Documented sample approval and inspection criteria
J-Curved vs C-Curved vs Flat Touch Monitor
| Feature | J-Curved | C-Curved | Flat |
|---|---|---|---|
| Profile | A mainly upright display with a curved lower section | A continuous concave curved viewing surface | A conventional flat display surface |
| Best Fit | Slot machine cabinets with a lower interactive zone | Immersive curved cabinets and panoramic viewing designs | Standard equipment, replacement and simpler enclosure designs |
| Integration Complexity | Requires cabinet and curve matching | Requires radius, enclosure and viewing-distance matching | Generally the simplest to integrate |
| Touch Use | Suitable for curved cabinet interaction | Suitable when touch is required across a continuous curved surface | Suitable for conventional touch interfaces |
| Main Selection Question | Does the cabinet need an upright display plus a curved interaction area? | Does the application need a continuous immersive curve? | Is a curved structure unnecessary? |
How to Choose a J-Curved Touch Monitor
Start with the cabinet rather than the monitor. Confirm the usable display area, outer dimensions, curve profile, mounting space and cable clearance first. Then select resolution, touch, brightness, interfaces, power and controller requirements. A physical sample should be tested in the actual cabinet before mass production.
- Screen size and active display area
- Outer dimensions and cabinet opening
- J-curve direction, radius or supplied profile drawing
- Resolution and content-source compatibility
- Touch points, cover glass and special touch conditions
- Brightness, anti-glare treatment and ambient lighting
- HDMI, USB, network and control interfaces
- Power input and destination-country requirements
- Mounting method, cable clearance and ventilation
- Quantity, prototype plan and required delivery date
- Required certifications for the destination market
- Packaging and shipping requirements
What Determines the Cost?
The cost of a J-Curved Touch Monitor depends on screen size, panel availability, curve design, touch technology, cover glass, resolution, brightness, housing, controller, interface layout, order quantity, testing, compliance, packaging and shipping. A reliable B2B quotation requires a defined configuration rather than a single generic online price.
Where Can You Buy a J-Curved Touch Monitor?
XFC supplies custom J-curved touch monitors directly for OEM, ODM and equipment-integration projects. Buyers can request a sample, provide a cabinet drawing and receive a configuration-based quotation. Shipping method and lead time are confirmed according to product size, quantity, destination and project status.
How XFC Verifies a Custom J-Curve Project
- Incoming Material Inspection
- Curved Structure and Dimension Check
- Display and Touch Function Test
- Interface and Power Verification
- Aging and Continuous-Operation Test
- Appearance Inspection
- Protective Packaging Check
- Pre-Shipment Confirmation
XFC Manufacturing Trust Data
- 13+ years focused on touch displays
- OEM and ODM support
- MOQ from 1 unit
- 100% inspection
- Support from design and sample to mass production
- Product experience covering 2.5 to 120-inch display projects
- Export experience across more than 80 countries
Certificates and compliance marks must be displayed only when the actual certificate applies to the selected J-Curved Touch Monitor configuration and destination market. Do not automatically attach every company certificate to this product.

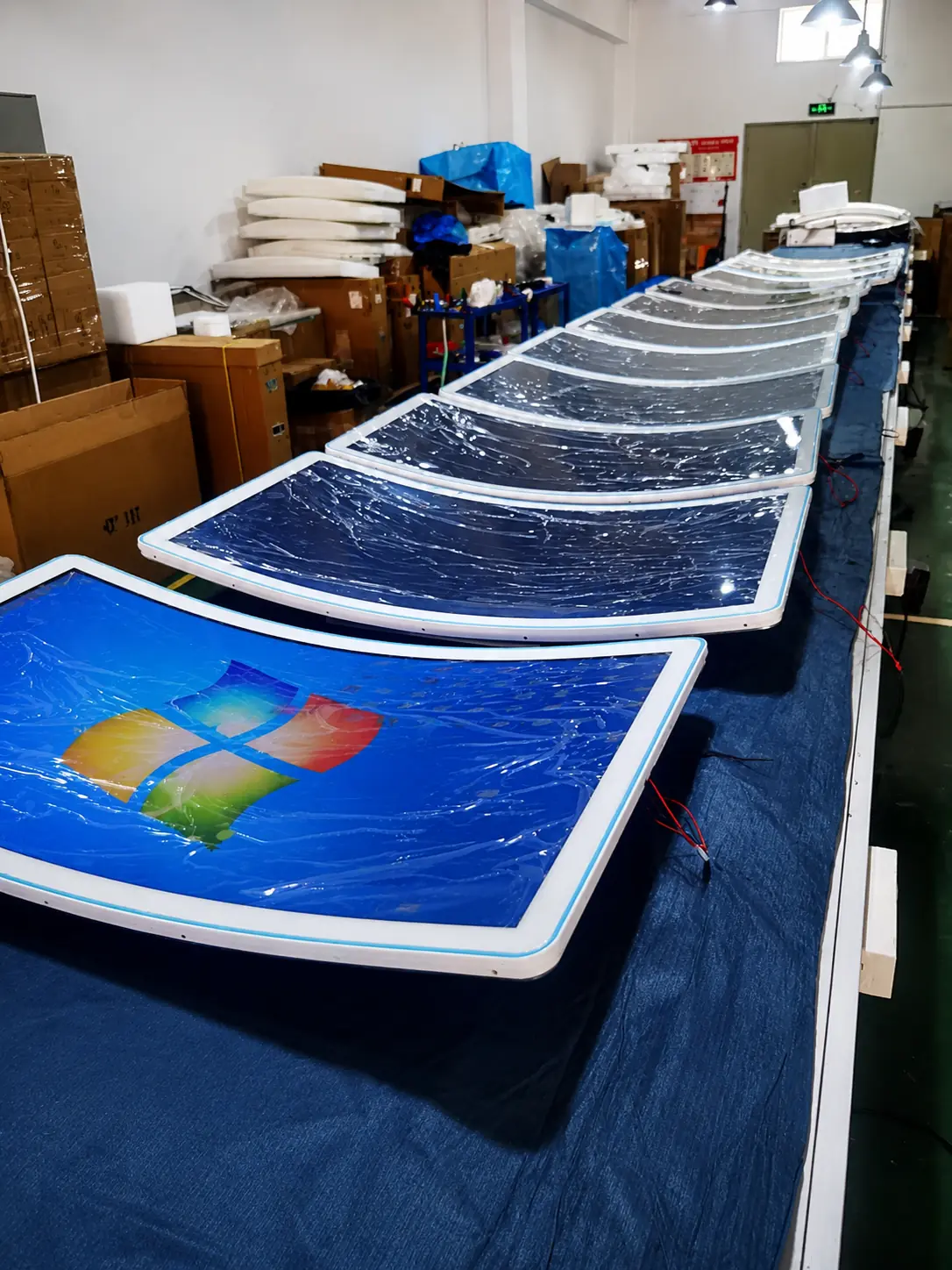

Inside the Factory: Production & Quality Testing
Watch our brief 45-second overview showcasing the rigorous assembly and testing procedures at our facility. See firsthand how our QC team conducts 100% inspections to verify touch response, display quality, interfaces and appearance according to the approved specifications.
Global Quality & Compliance Standards
Our products are manufactured under strict quality control systems and comply with international standards, ensuring reliability and safety for your projects.
ISO 9001:2015
CE Certification
FCC Certification
RoHS Compliance
IP56/IP65/IP67/IK10
Related Curved and Casino Display Solutions
Curved Touch Monitor
Explore XFC’s broader range of curved touch display solutions.
C-Curved Touch Monitor
Compare continuous C-shaped curved displays for immersive cabinet designs.
Slot Machine Display
View flat, vertical, curved and touch display options for gaming equipment integration.
Industrial Touch Screen
Explore rugged touch displays for industrial equipment and embedded control.
J-Curved Touch Monitor FAQs
1. What is a J-Curved Touch Monitor used for?
2. What sizes are available?
3. Does XFC manufacture complete slot machines?
4. Can XFC supply a 4K J-Curved Touch Monitor?
5. Which interfaces and operating systems are supported?
6. Is this monitor suitable for point-of-sale equipment?
7. Is it recommended for graphic design?
8. Can I order a sample before mass production?
9. How fast can XFC ship a J-curved monitor?
10. How do I choose between a J-curved and C-curved monitor?
11. Does XFC provide repair or replacement support?
Build Your J-Curved Display Around the Cabinet
Send XFC your cabinet drawing, target size, curve profile, required resolution, interfaces, power, quantity and destination. Our team will evaluate the configuration and prepare a project-based recommendation and quotation.
Inquiry Preparation Checklist
- Screen size
- Cabinet opening
- Curve or radius
- Mounting method
- Resolution
- Touch requirement
- Interface
- Power
- Quantity
- Destination
